3-channel Veterinary ECG EKG Machine YSECG300SV

Model: YSECG300SV
7″ color LCD, Auto/Manual/Arrhythmia modes, high‑precision filters, 3 h rechargeable battery, USB/RS232 connectivity, and 100‑case storage.
  • ModelYSECG300SV
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromGuangZhou, China
  • ShippingAir/Sea
  • Description Get Price Review(0)

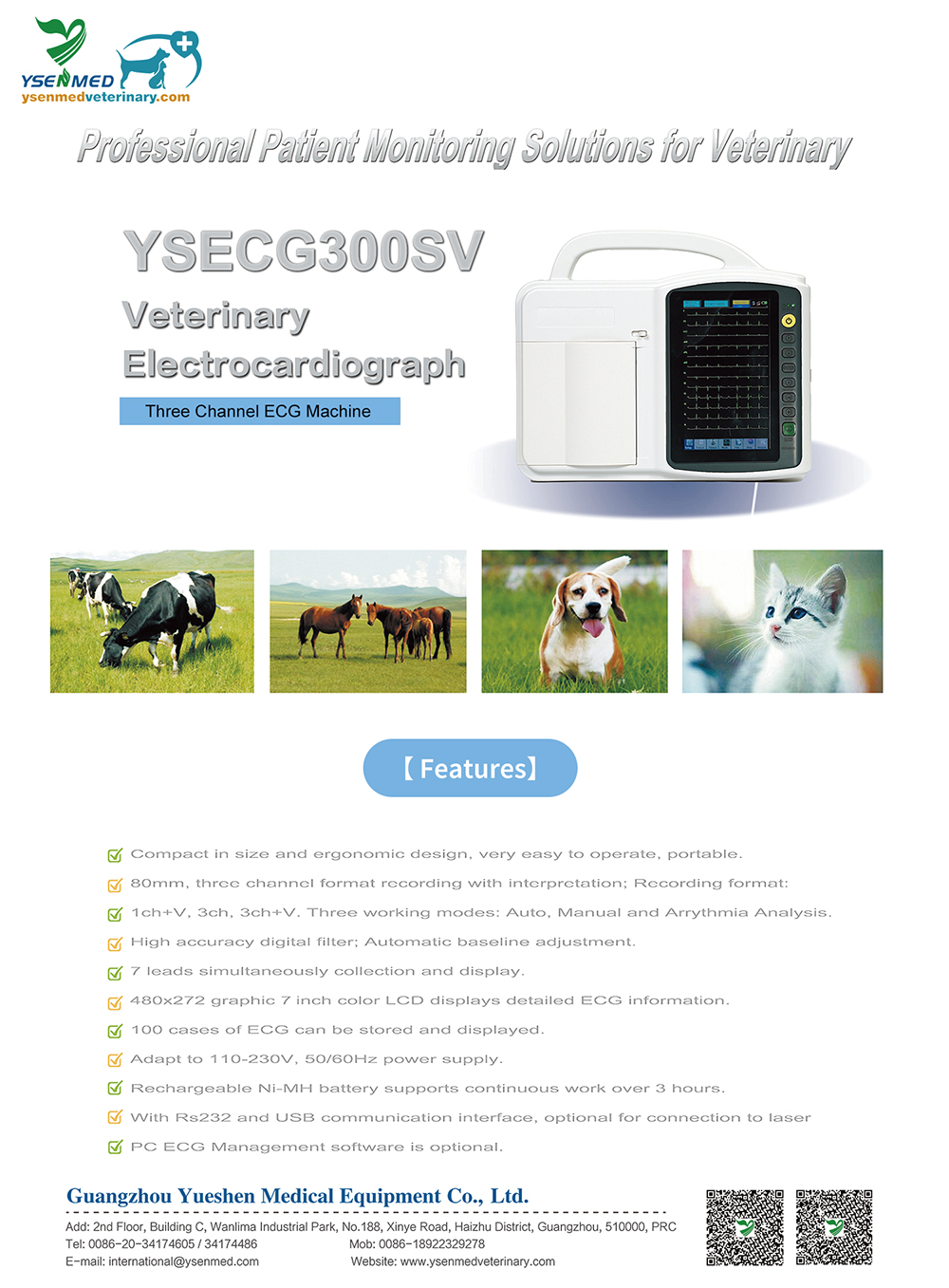

    Features
    Compact in size and ergonomic design, very easy to operate, portable.
    80mm, three channel format recording with interpretation; Recording format.
    1ch+V, 3ch, 3ch+V. Three working modes: Auto, Manual and Arrythmia Analysis.
    High accuracy digital filter; Automatic baseline adjustment.
    7 leads simultaneously collection and display.
    480x272 graphic 7 inch color LCD displays detailed ECG information.
    100 cases of ECG can be stored and displayed.
    Adapt to 110-230V, 50/60Hz power supply
    Rechargeable Ni-MH battery supports continuous work over 3 hours.
    With Rs232 and USB communication interface, optional for connection to laser.
    PC ECG management software is optional.

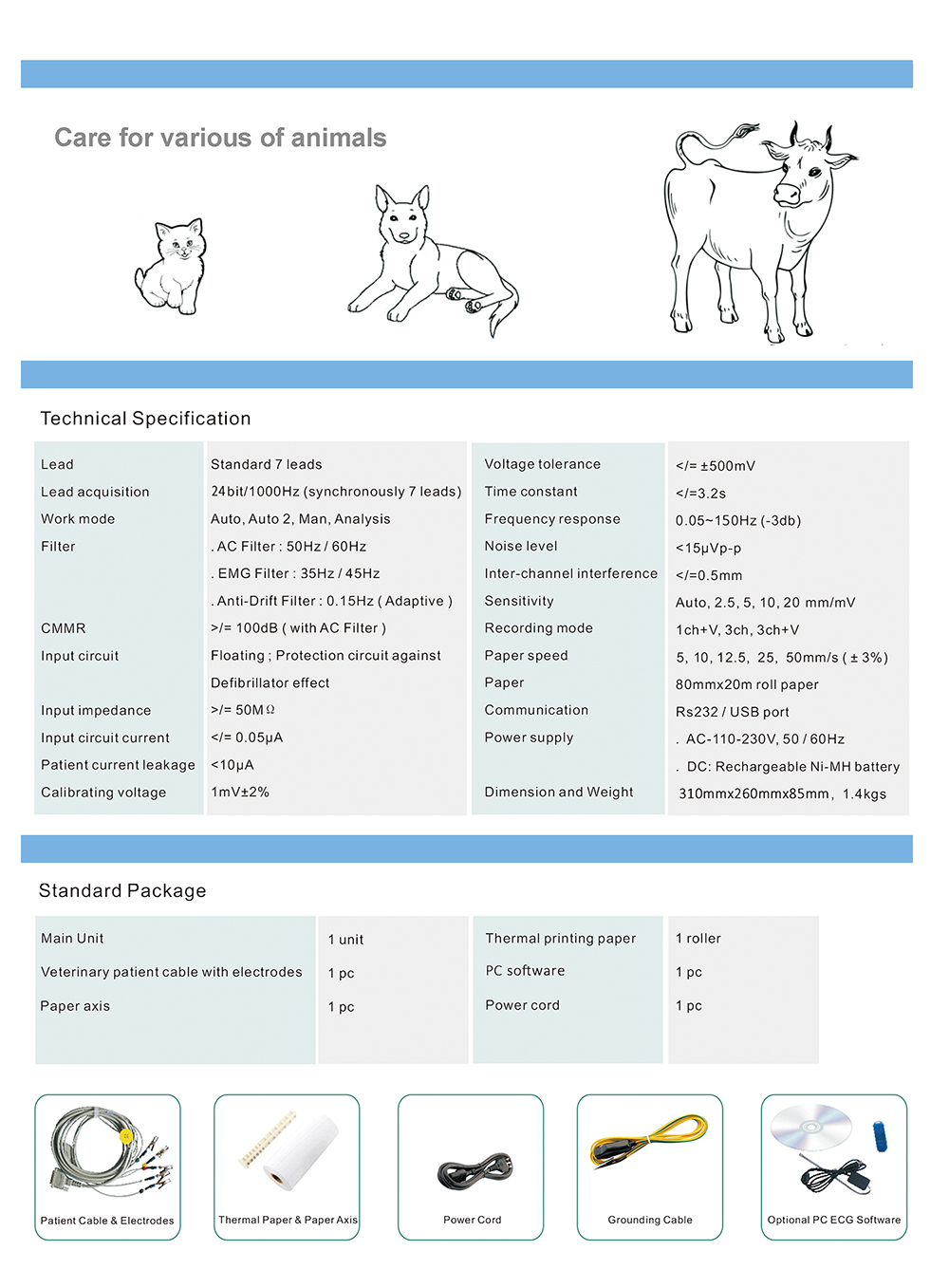

    Technical Specification
    Lead: Standard 7 leads
    Lead acquisition: 24bit/1000Hz(synchronously 7 leads)
    Work mode: Auto, Auto 2, Man, Analysis
    Filter:
    AC Filter: 50Hz/60Hz
    EMG Filter: 35Hz/45Hz
    Anti-Drift Filter: 0.15Hz(Adaptive)
    CMMR: >/= 100dB(with AC Filter)
    Input circuit:
    Floating; Protection circuit against
    Defibrillator effect
    Input impedance: >/= 50M
    Input circuit current: μA
    Patient current leakage: <10μA
    Calibrating voltage: 1mV±2%
    Voltage tolerance: ±500mV
    Time constant:
    Frequency response: 0.05~150Hz(-3db)
    Noise level: <15μVp-p
    Inter-channel interference:
    Sensitivity: Auto, 2.5, 5, 10, 20 mm/mV
    Recording mode: 1ch+V, 3ch, 3ch+V
    Paper speed: 5, 10, 12.5, 25, 50mm/s(±3%)
    Paper: 80mmx20m roll paper
    Communication: Rs232/USB port
    Power supply:
    AC-110-230V, 50/60Hz
    DC: Rechargeable Ni-MH battery
    Dimension and Weight: 310mmx260mmx85mm, 1.4kgs

    Standard Package
    Main Unit: 1 unit
    Veterinary patient cable with electrodes: 1 pc
    Paper axis: 1 pc
    Thermal printing paper: 1 roller
    PC software: 1 pc
    Power cord: 1 pc
