Staining Machine
Categories

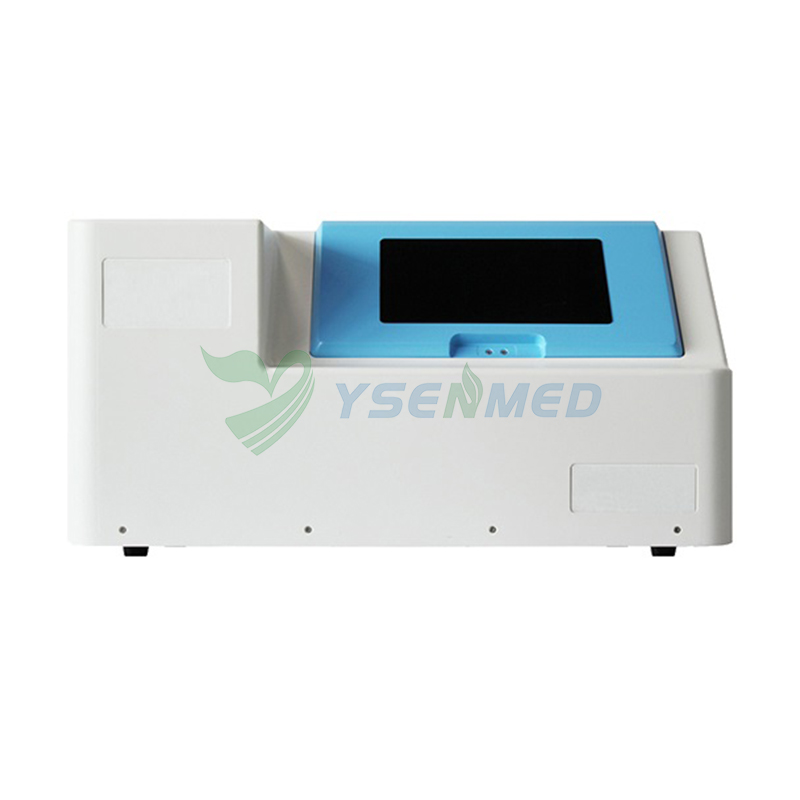

Digital Pathological Slide Scanner YSPD-TRO-006

Model: YSPD-TRO-006
YSPD-TRO-006 Digital Pathology Slide Scanner — 20×, ≤0.25µm/pixel, 75fps, auto 6/60/120/240-slide loader, 180s/15×15mm scan, AI-ready GPU, network storage.
  • ModelYSPD-TRO-006
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAir/Sea
  • Description Get Price Review(0)
    Product Description

    Equipment composition
    1. Pathological section scanner
    2. Embedded PC with advanced graphics capability.

    Optical microscopy
    1. 3200*2200 1” global shutter camera, Frame rate≥75f/s
    2. 20x objective lens, NA=0.75

    Hardware Configuration
    1. Scanner platform XY drivers support resolution of 5um, Z auto focus support 0. 25um
    resolution.
    2. Scanning image resolution:20x objective lens, resolution ≤0.25um / pixel.
    3. Scanning process automation, Simple sample loading.
    4. LED light source, with a service life of more than 20000 hours.
    One click for scan. SW can pause/stop the scan process, support sample add-in during scan
    process.
    5. samples container. With the optional loading system, the sample container can reach 120 /
    240.
    6. Embedded PC, with nVidia professional graphics card for AI, featured with PC I0s like
    keyboard, USB3.0etc
    7. Slide Capacities: 6pcs (60pcs,120pcs ,240pcs optional)

    Software configuration
    1. Images format: JPEG or BMP
    2. It supports automatic recognition of smear contour and scanning at specified position.
    3. Continuous scanning mode. The scan can be finished within 180s for one sample.
    (15mm*15mm)
    4. 4.4 Support history image browsing and review.
    4.5 Support auto sample positioning of sample slide.
    4.6 The scanner can mark the specified area and take high- -definition screenshots.
    4.7 It supports the storage of image data through local or network, and can query and count the
    stored data.
    Net Weight: 35kg
    Dimensions: 698*464*345mm

    Package Info:
    Each instrument packed Wooden Case
    Dimensions: 800*550*550mm,
    Gross Weight: 75kg
