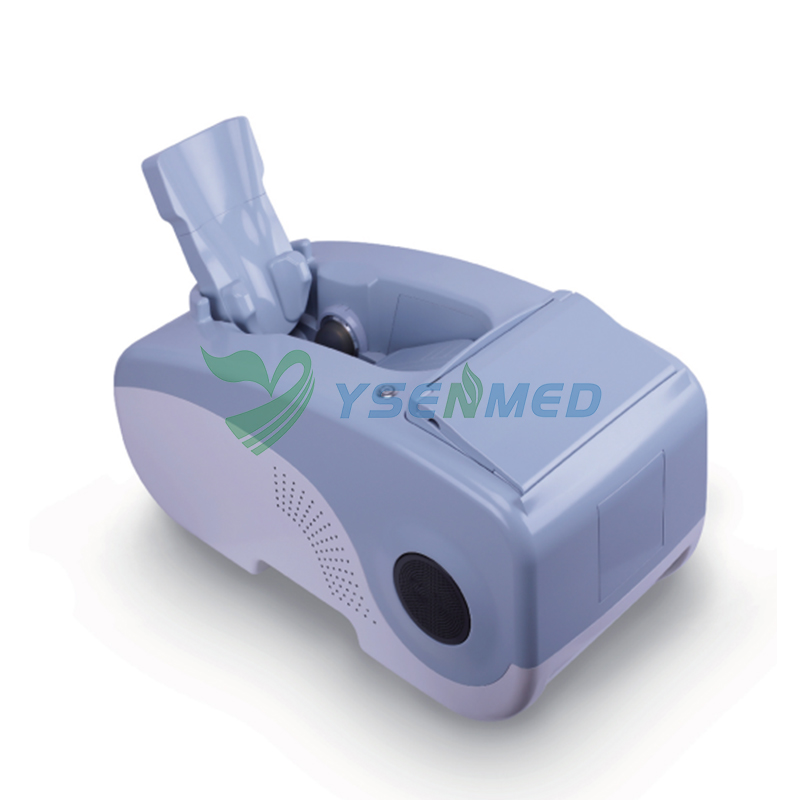

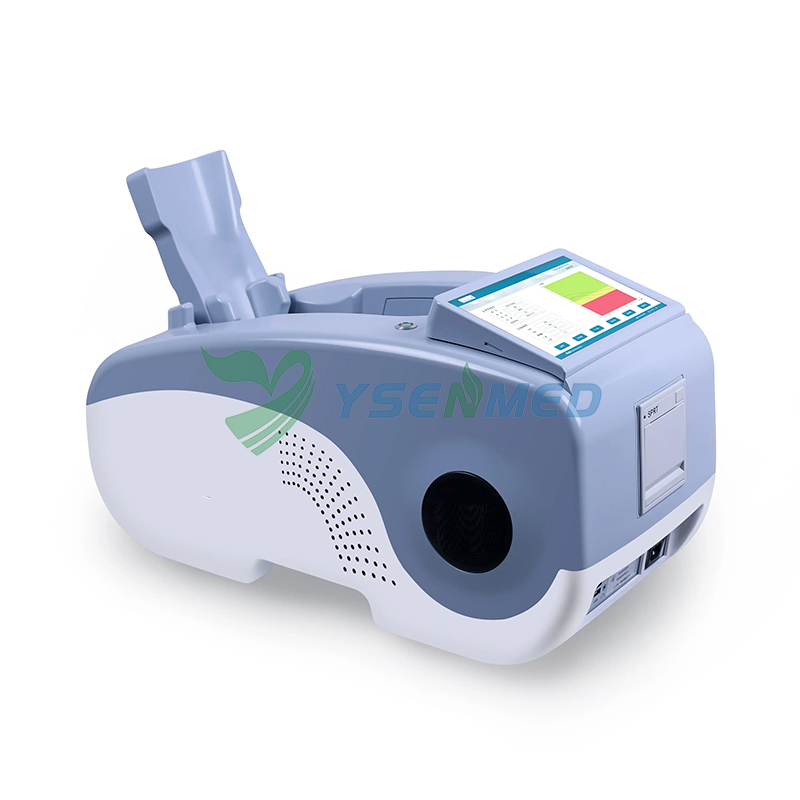

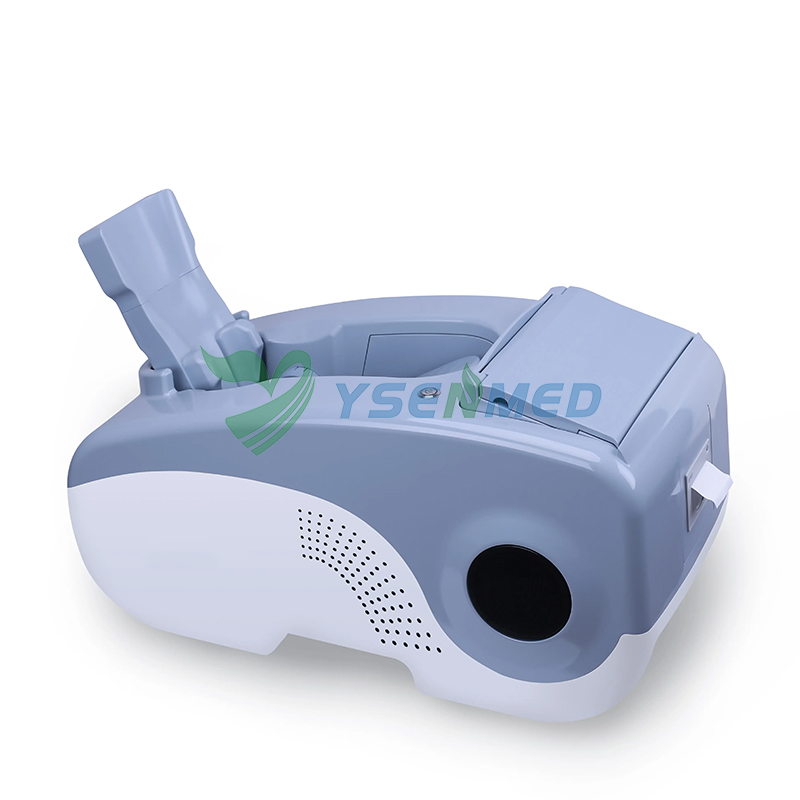

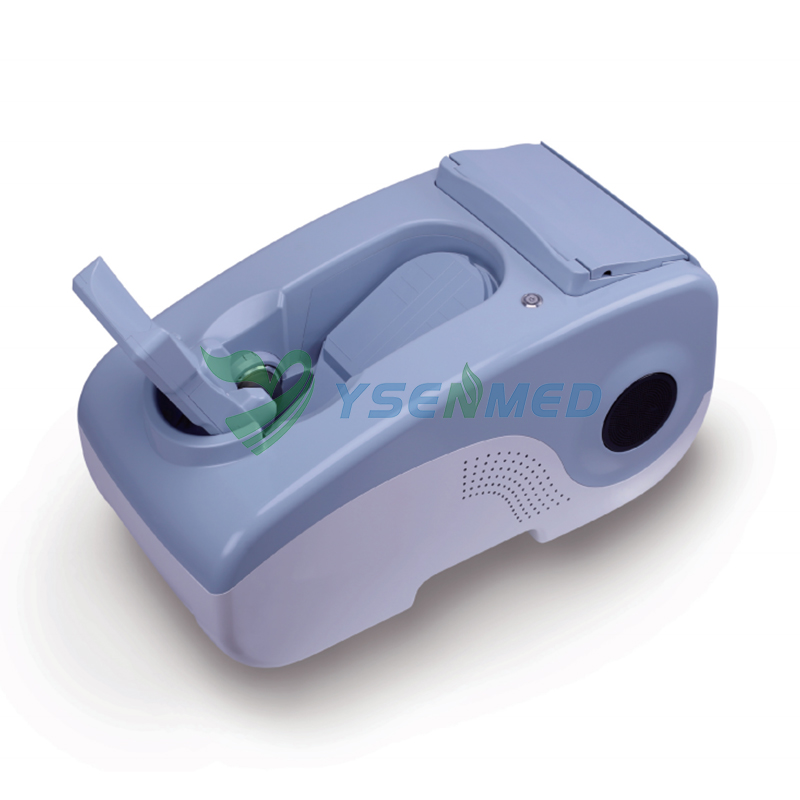

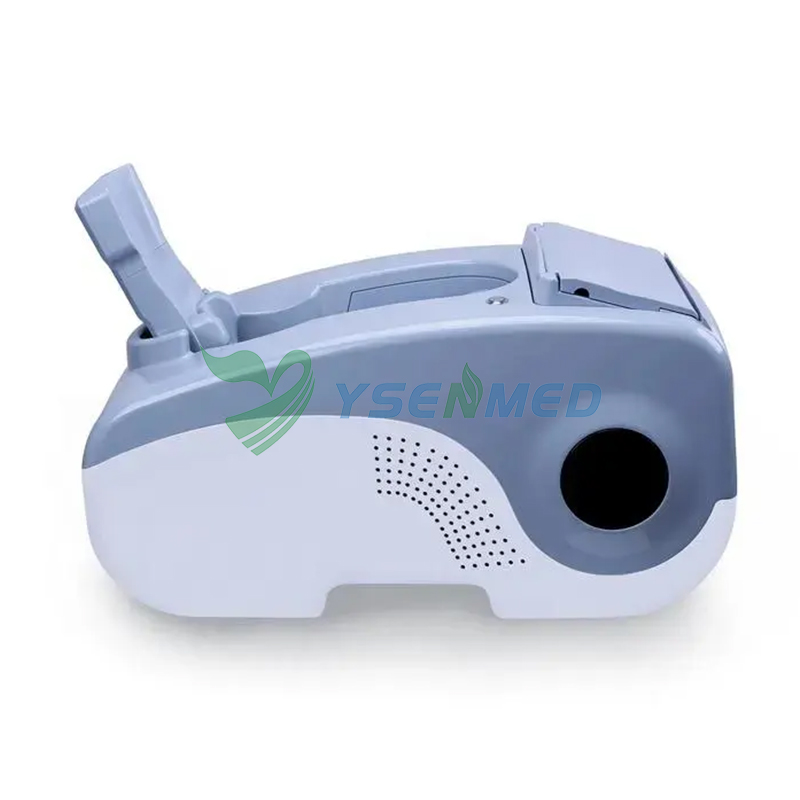

Ultrasound Bone Densitometer YSBMD-KJ3 Parameters
Measurement Part: Calcaneus
Measurement Method: Full dry ultrasonic measurement
Ultrasound Parameter: BUA,SOS, OI
Other Parameter: T-Score, Z-Score, T-Ratio, Z-Ratio, BMI, Height prediction(YSBMD-KJ3A)
Transducers Frequency:0.5MHz±15%
Measurement Time: ≤25s
Operating system: Windows xp/7/8/10, Android 5.0 and above
(YSBMD-KJ3A)
Operating Temperature: 5-40°C
Humidity: 30-70%
Electrical Power Requirement:AC220±10%,50Hz
Dimension(mm):645mmx330mmx360mm
Weight: 14kg
YSBMD-KJ3 suitable for adult measurement;
YSBMD-KJ3A suitable for child + adult measurement
Functional
Faster
Measure quickly and simply, especially suitable for a large number of patients census.
Ultrasound Bone Densitometer YSBMD-KJ3 More Accurate
Oil balloon Transducer, searching for the best signal automatically.
Temperature compensation system, improving the measurement accuracy
Use global bone density database, according to patients race to select database.
According to patients' foot size, choosing the different foot plate to reduce errors.
Ultrasound Bone Densitometer YSBMD-KJ3 More Economical
The oil balloon is special, which can be used permanently in the equipment life cycle.
Consumables are ultrasound transmission gel and printing paper, economical.
Ultrasound Bone Densitometer YSBMD-KJ3 Safer
Painless, non-trauma and non-radiation, can be measured repeatedly.
QUS quantitative ultrasound measuring, especially suitable for pregnant women, children and other special groups.
Ultrasound Bone Densitometer YSBMD-KJ3 More Authoritative
Use WHO's Osteoporosis Diagnosis Standard.
Ultrasound Bone Densitometer YSBMD-KJ3 More Convenient
YSBMD-KJ3A Model Adult/Child calf support can be replaced.
YSBMD-KJ3A Can be connected to tablet, can be used anywhere.
