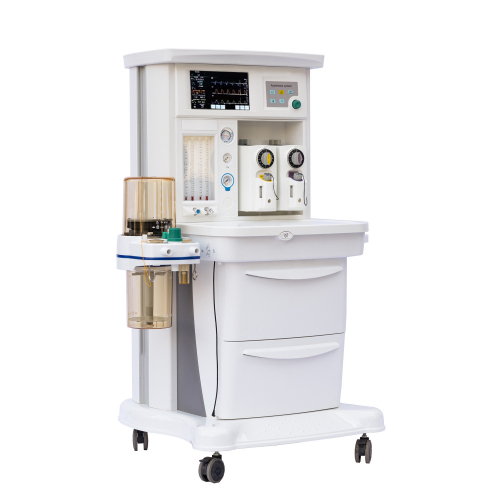

Sistema de anestesia YSAV6301

Modelos: YSAV6301
Compartir:
Descripción Agregar a la consulta Revisar(0)
Features:
1.Portable design, easy to operate and save space in operation theatre.
2.Molding production with a benefit of light weight and rust-proof.
3.Integrated breathing circuit design ensures simple operation and clear equipment, 0.8L CO2 absorber also equipped on breathing circuit.
4.APL valve design can set the pressure limit under manual control.
5.4 tubes flowmeter for O2 and N2O, support low flow anesthesia.
6.Self-designed high precision vaporizer with flow, pressure, temperature compensation, self-locking structure. High precision of anesthesia agent control.

Technique Specifications:
Physical Specifications
Dimensions: 50*46*32cm
Weight: 22kg
Casters: Front wheels with lock
Pipeline Supply
Gas configuration: O2,N2O
Pipeline input range: 280-600Kpa
Modes of Ventilation
MANUAL
Ventilator Parameter
Working type: Pneumatic driven
System Standard
Hypoxic guard system: N2O cut-off valve, O2 concentration>25%
APL valve: <6Kpa
O2 Flush: 25-75L/min
Volume of CO2 absorber: 0.8L(Optional for 1.6L CO2 absorber)
Flowmeter: 4 tubes, Cascade 0.1-10L/min O2, 0.1-10L/min N2O
Vaporizer: 1 unit (Isoflurane/Enflurane/Sevoflurane/Halothane)
Optional
Anesthesia ventilator
Trolley
AGSS

Available to connnect anesthesia ventilator (YSAV1010 ,YSAV1020)

The ideal Portable Anesthesia System support an upgrading not only for clinical field, but also applicable for anesthesiology, gynaecology and obstetrics, stomatology and emergency department. It gives a safe, accurate and convenient support for application combination which will assit with fast response to life care.
