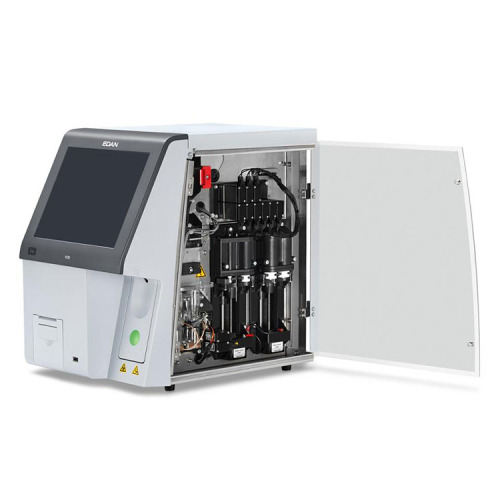

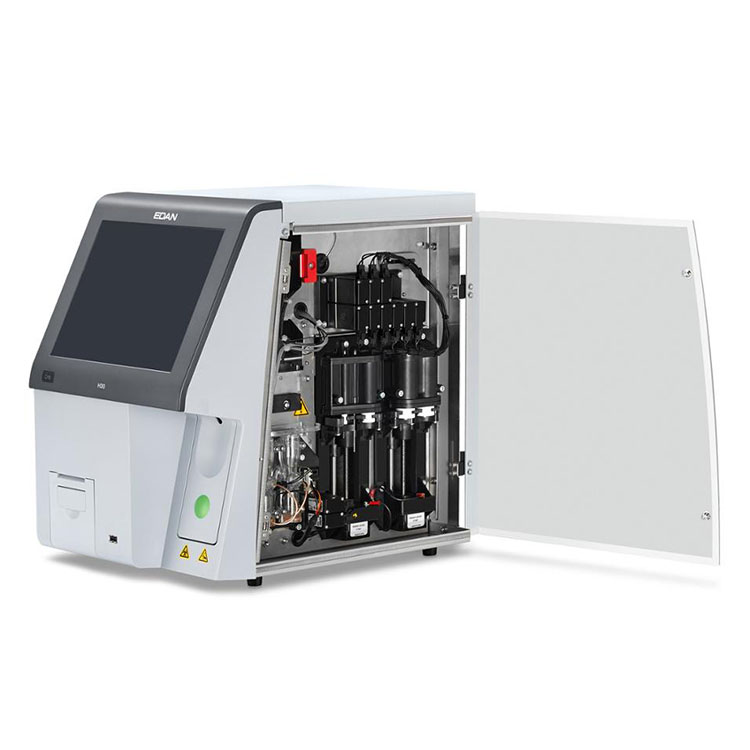

3-part Automatic Hematology Analyzer EDAN H30

Model: EDAN H30
60 samples per hour
10.4 inch TFT touch screen
  • ModelEDAN H30
  • BrandEDAN
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • Share:
    Description Get Price Review(0)


    Parameters
    20 parameters: WBC, LYM%, MID%, GRA%, LYM#, MID#, GRA#, RBC, HGB, HCT, MCV, MCH,
    MCHC, RDW, RDW-SD, PLT, MPV, PDW, PCT, P-LCR
    Histograms: WBC (3-Diff), RBC and PLT

    Principles
    Electrical impedance method for cell counting and cyanide free lyse for hemoglobin measurement

    Throughput
    60 samples per hour

    Sample Volume
    9.6μL for whole blood mode ; 20μL for predilution mode

    Display
    10.4 inch TFT color touch screen

    Interface
    5 x USB Port, LAN

    Operating Environment
    Temperature: 18°C~32°C ; Humidity: ≤80% ; Air pressure: 70 kPa~106 kPa

    Input Device
    Built-in virtual keyboard and external barcode scanner

    Power Supply
    100V-240V, 50Hz/60Hz

    Dimensions and Weight
    Depth (430 mm) x Width (275 mm) x Height (406 mm) ; Weight: <15kg

    Data Storage Capacity
    35,000 files including demographics, results and histograms, 12 QC files (100 data per file)
