PCR / Thermocycler

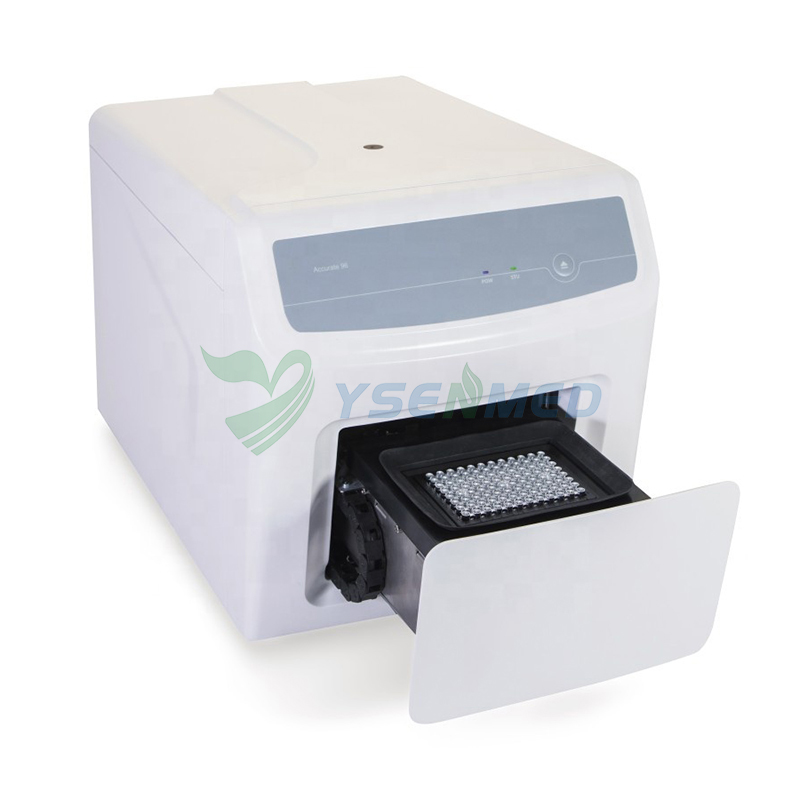

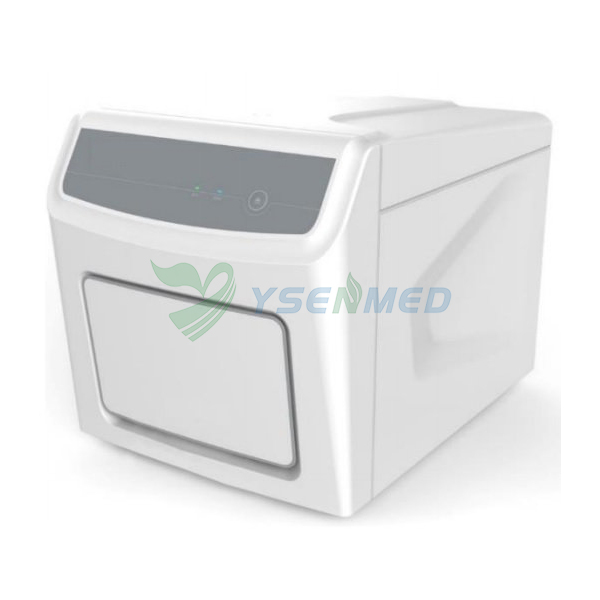

4 or 6 channels 96 wells real time quantitative PCR YSPCR-Q96

Model: YSPCR-Q96
High-sensitivity and wide dynamic range of fluorescence detection system, sample dynamic range from 10' to 10 copies
  • ModelYSPCR-Q96
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • Share:
    Description Get Price Review(0)

    As a necessary choice for quantitative analysis of molecular biology, real-time PCR system has been widely used in various fields such as scientific research, clinical detection and diagnosis, quality and safety testing, and forensic applications.
    1. Up to 6 fluorescence detection channels allowing multiplex PCR.
    2. Effectively reduce multi-color crosstalk and edge effect, no ROX correction required.
    3. New optical scanning detection system
    4. Innovative scanning method and time-resolved signal separation technology
    5. Unique edge temperature compensation technology
    6. User-friendly software
    Temperature control system
    Sample capacity 96
    Reaction volume 10-50 μl
    Thermal cycle technology Peltier
    Max. Heating/Cooling rate 6.0° C/s
    Heating temperature range 4 – 100 °C
    Temperature accuracy ± 0.2°C
    Temperature uniformity ±0.2℃ @60℃ ,  ±0.3℃ @95℃
    Temperature gradient setting range 30–100°C
    Temperature gradient difference setting range 1 – 36°C
    Detection system
    Excitation light source 4/6 monochrome high efficiency LEDs
    Detection device PMT
    Detection mode Time-resolved signal separating technology
    Excitation/detection wavelength range 455-650nm/510-715nm
    Fluorescent channels 4/6 channels
    Supported dye FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ
    Sensitivity Single copy gene
    Resolution 1.33 folds copy number difference can be distinguished in single-plex qPCR
    Dynamic range 10 orders of magnitude copies
