Features

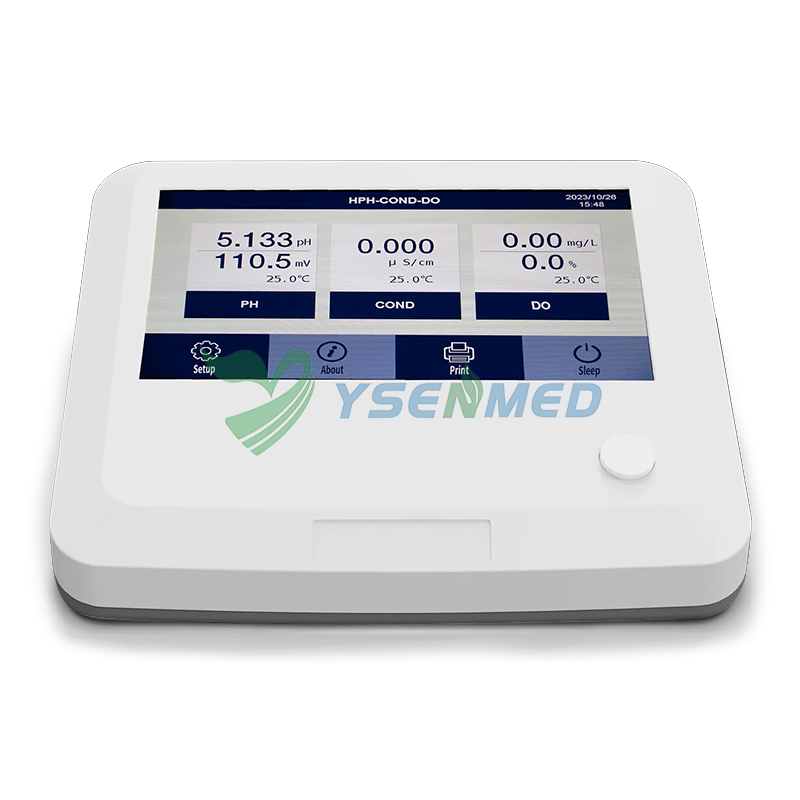

High-res 7" touch screen, easy for operation
User-friendly operating navigation by graphics and texts
Intelligent functions such as automatic calibration, automatic temperature compensation, timing
Data logger, parameter setup, etc.
1 to 5-point calibration for pH mode
Data storage: 500 readings/parameter
Data export: Flash disk/PC/Wireless printer (the printer is optional)
Equipped with a flexible probe holder, magnetic stirrer and standard calibration solution
Protection class: IP54
Equipped with various electrode holders and standard solutions, suitable for measuring different parameters.
Parameters
Parameter Cond/TDS/Sal./Res.℃ | DO.℃
pH Measurement range -
pH Resolution -
pH Accuracy -
pH Calibration points -
pH ATC range -
ORP Measurement range -
ORP Resolution -
ORP Accuracy -
Conductivity Measurement range 0-2000.0mS/cm,auto-ranging:0-19.999μS/cm;
20.0-199.9μS/cm;200-1999μS/cm;
2.00-19.99mS/cm;20.00-199.9mS/cm;
200.0-2000mS/cm (K=10);
Match test range:0-200mS/cm;
TDS:0-100.0g/L(TDS factor adjustable);
Resistivity: 5.000Ω·cm-100.0MΩ·cm; Salinity:0-100ppt
Conductivity Calibration points 1point
Conductivity Resolution 0.001
Conductivity ATC range (0.0~50.0) ℃/(32.0~122.0)°F
Conductivity Accuracy ±0.5% FS±1digit
DO Measurement range (0.00~20.00)mg/L
DO Accuracy ±0.30mg/L
DO saturation (0.0~200.0)%
DO Automatic barometri pressure compensation (0~200.0)kPa
DO Automatic temperature compensation (0.0~50.0) ℃/(32.0~122.0)°F
DO Manual salinity compensation 0~45ppt
Temperature Measurement range (0.0~100.0) ℃/(32.0~212.0)°F
Temperature Accuracy ±0.2℃
Data export Flash disk/PC/Printer
Power supply DC12V
Test kit Meter;
Glass ATC conductivity probe DCON201TG,K=1.0;
Polarographic DO probe DDO01-2M;
Standard Cond solution:84μS/1413μS/12.88mS/cm,
50mL,one for each;
Membrane refill solution:DDOS-01,30mL,1btl;
Membrane sensor caps DDOSC: 3pcs/group,1pkg;
PC cable:1pc;Flexible probe holder DF01: 1pc;
Magnetic stirrer: 1pc;Power adaptor
