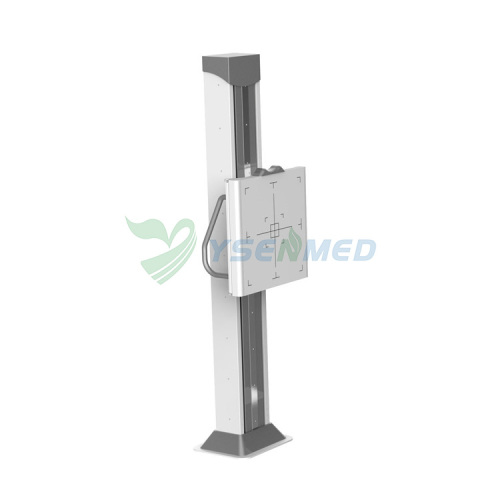

Bucky Stand:a new style fixed beam filtration device which can match All kinds of x ray machines for chest radiography.
Technical Performance & Parameter:
1.Cassette Frame Dimenstion : 440(mm)×520(mm)
2.The Scope of ascend and descend (the distance between focal spot and ground) : ≥ 1100mm, the minimum distance should ≤450mm.
3.The fixed beam filtration Parameter:
| Item |
Parameter for X RAY BUCKY STAND |
| Beam filtration specification |
15″×18″ |
| Grid Ratio |
10 : 1 |
| Grid Density |
40L/cm , 60L/cm |
| Focal distance |
180cm |
| Total absorptioncoefficient |
≤2.5 |
| Safe coefficient |
Can endure :30kg,Safe coefficient≥10 |
| Resistance |
≥ 10N |
| Radiography Film Specification |
8″×10″~ 14″×17 (203 mm×254mm , 356 mm×432mm) |
