Application:

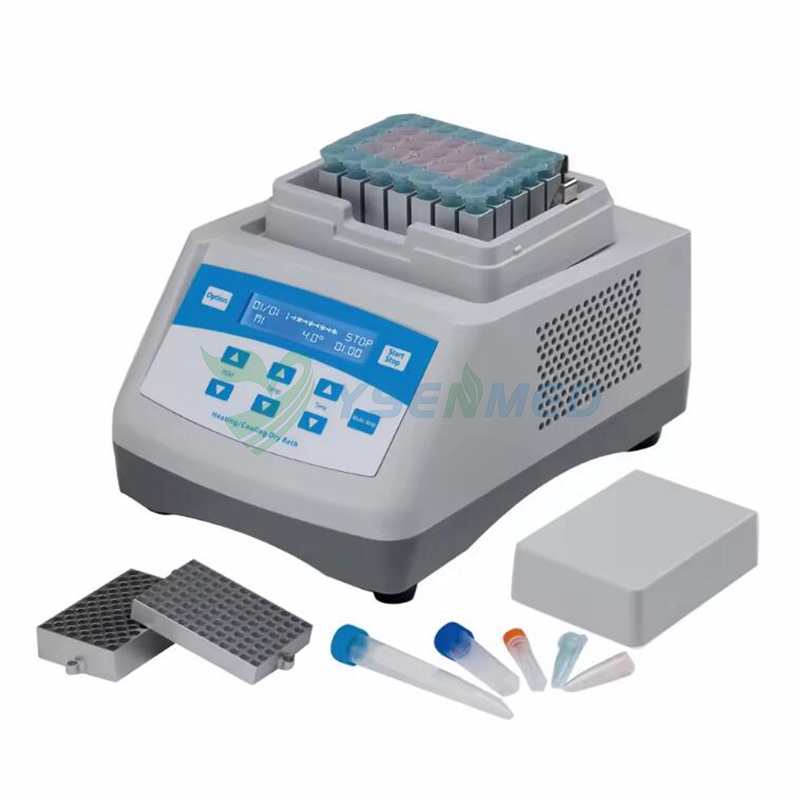

YSTE-DBI3 is microprocessor controlled Dry Bath Incubator. Instead of traditional water bath device, the heat-conducting medium is high purity alumium. The exact desired temperature is easily set using the arrow keys on the sloped control panel while values are shown on the large digital display. No checking of a thermometer and readjusting temperature is necessary. The user calibration feature allows for easy calibration to in house standards when required.This product can be widely used in preservation and reaction of samples, DNA amplification, electrophoresis denaturation and serum solidification, etc.
Features:
* LCD display.
* Automatic fault detection and buzzer alarm function.
* Electronic calibration. User can reset to any local standard.
* Easy replacement and cleaning of block.
* Built-in over-temperature protection.
* Customized modules are accepted.
Technical Parameters:
|
Model
|
YSTE-DBI3
|
Model
|
YSTE-DBI3
|
|
Temp Setting Range
|
0°C~100°C
|
Auto Heating
|
Yes
|
|
Temp Control Range
|
RT+5°C-100°C
|
Auto Resume To Run
|
Yes
|
|
Time Range
|
1 min ~ 99h59min/∞
|
Capacity
|

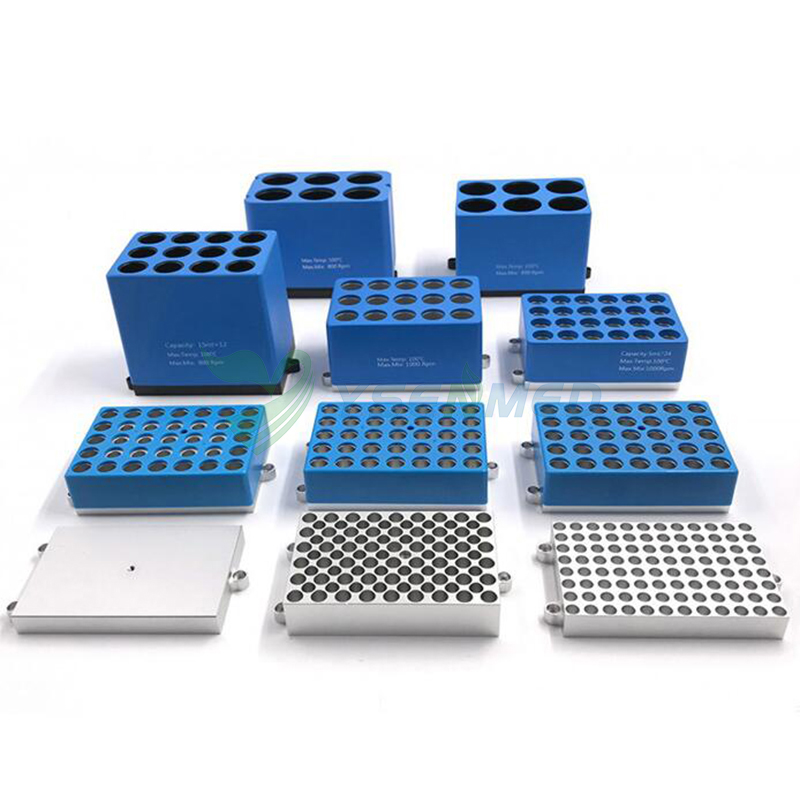

See optional block
|
|
Temp Accuracy
|
≤±0.3°C
|
Power
|
150W
|
|
Display Accuracy
|
0.1°C
|
Power Supply
|
220V, 50/60Hz;110V, 60Hz
|
|
Temp Uniformity
|
≤±0.3°C
|
Fuse
|
250V 3A 05*20
|
|
Heating Time
|
≤12min(from 25°C to 100°C)
|
Dimension
|
260*195*150mm
|
|
Multi Points Running
|
Yes (Max 5 points)
|
Weight
|
2.5Kg
|
|
Multi Cycle
|
Yes (Max 99 times)
|
Package Size
|
410*320*310mm
|
|
Auto Running
|
Yes
|
Gross Weigh
|
3.5kg
|
