Chemistry Analyzer

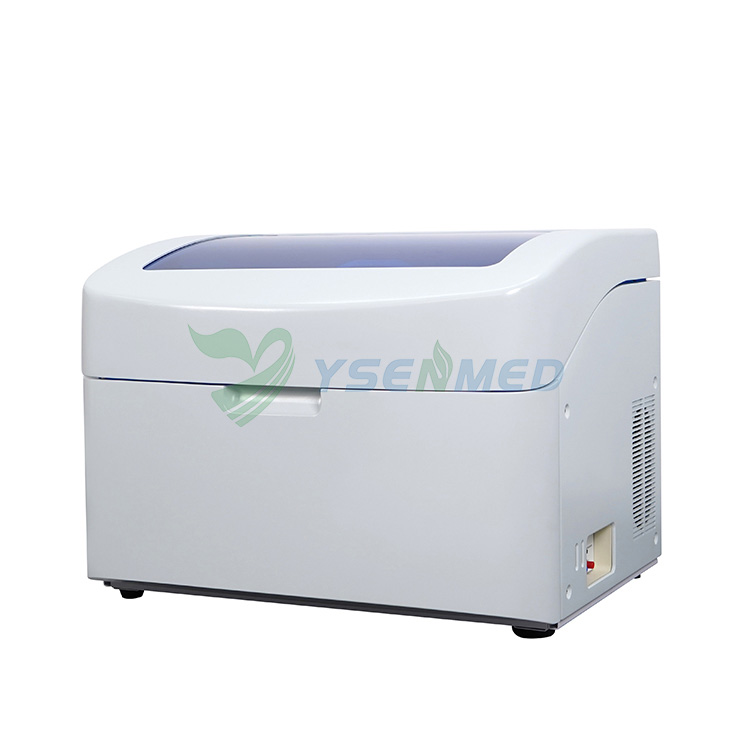

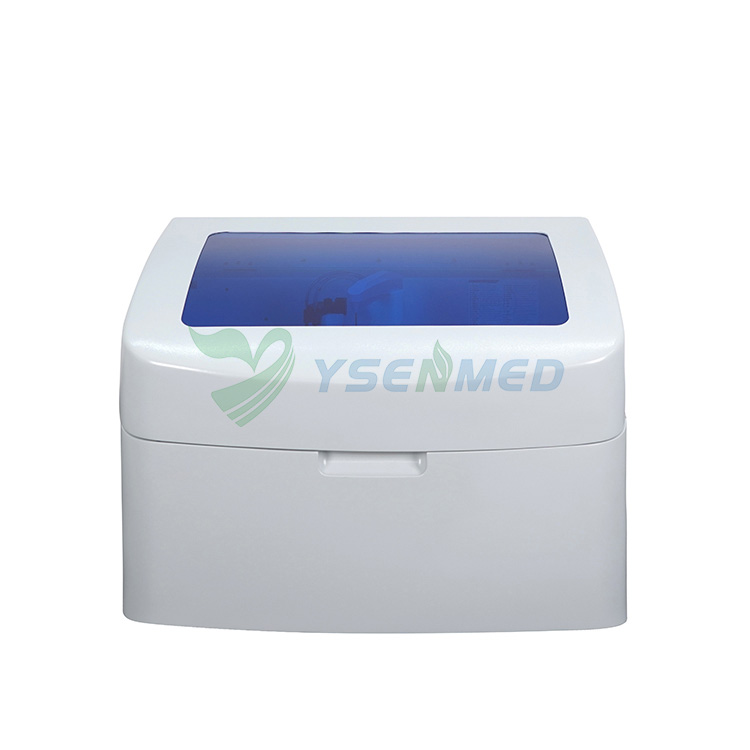

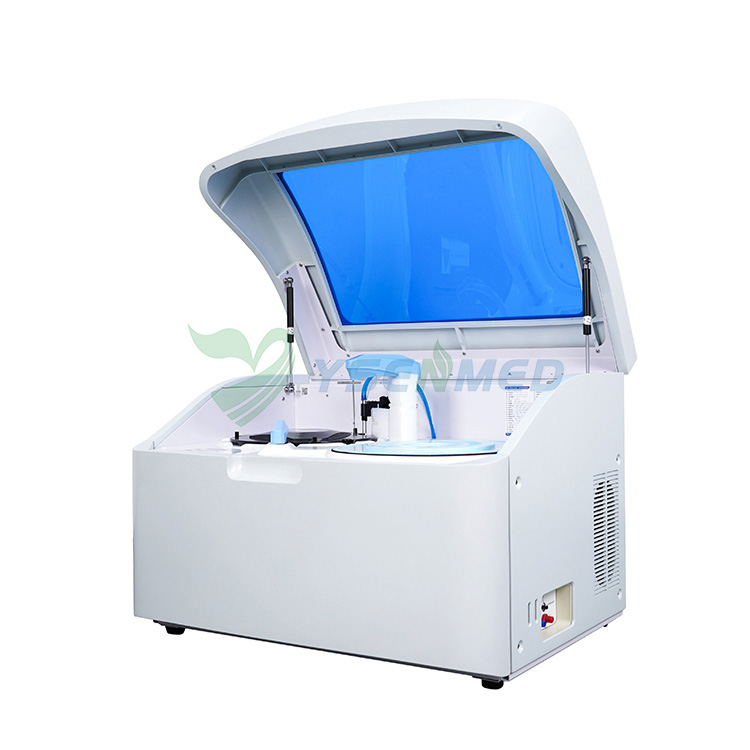

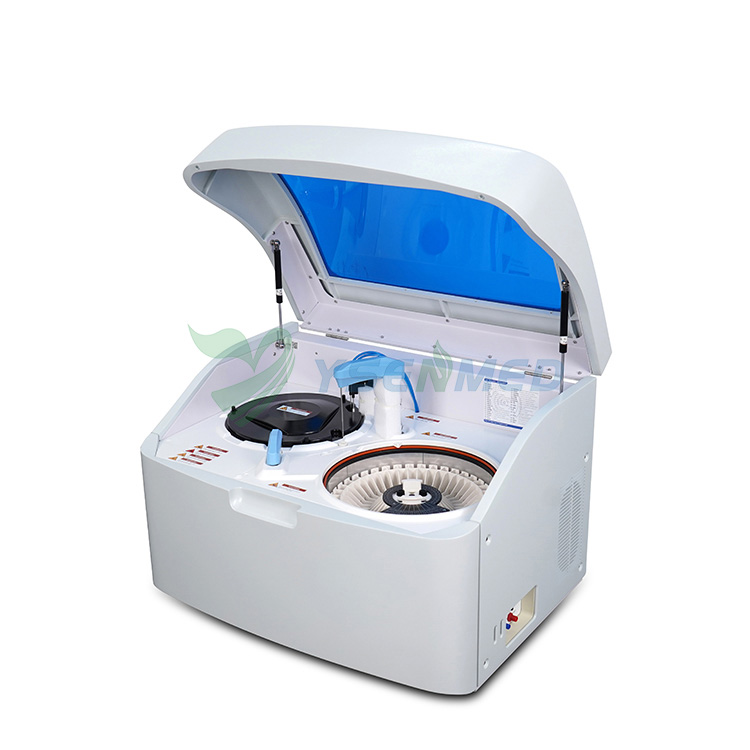

Fully Automated Clinical Chemistry Analyzer YSTE180C

Model: YSTE180C
High Performance Laboratory Fully Automatic Chemistry Analyzer
  • ModelYSTE180C
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • Share:
    Description Get Price Review(0)
    Senlo SL180
     Throughput constant 180 T/h or 300T/h,best for middle or small size hospital
    ► Closed integrated photovoltaic systems, no mechanical parts,maintenance free
    ► Minimum reaction volume is 150ul,cost saving
    ► Discrete,random access,automatic
    ► Random choice of method, the real discrete automatic chemistry analyzer
    ► This automatic chemistry analyzers have gained a lot of national patents during the researching

    Yuesen Med® YSTE0202
    Automatic Chemistry Analyzer
    Analyze Unit
    Throughput Constant 180T/h (non-ISE)
    Theory Absorption spectrometry, transmission turbidimetry
    Methodology End-point、Fixed-time、Kinetic、Ion selective electrode
    Test according set up, random access
    Reaction plate Contain 81 reaction cuvettes
    Maximum reaction time 15 minutes
    Minimum reaction volume 150 ul
    Material of cuvettes Special UV-transparent optical glass
    Cuvettes use Automatically cuvettes washing
    Optical Unit
    Light Source Halogen-tungsten lamp
    Photometer Reversed optics
    Wavelength 340nm-900nm wavelength option
    Absorption 0-4 Abs
    Reagent Unit
    Reagent plate 60 reagent positions,support for single and double reagent, reagent completely open
    Reagent storage temperature 2~10℃
    Reagent bottle 15ml, 20ml, 30ml, 50ml or 70ml,dead volume is less than 1.0 ml
    Reagent volume 20-500 ul, step by 1.0 ul
    Reagent/Sample Probe Automatically checked;Patent technology liquid level detection;Collision protection probe cleaning:Automatic washing for both inside and outside.
    Sample Unit
    Sample plate 60 sample positions
    Sample type Human (animal) serum、plasma、urine etc.
    Samples cup Support one-off micro cups
    Sample volume 2-100 ul, step by 0.1 ul
    Sample/reagent probe Automatically checked;Patent technology liquid level detection;Collision protection probe cleaning:Automatic washing for both inside and outside.
    Temperature control Unit
    Heating method Direct thermal solid thermostat closed
    Temperature equilibrium time <3 minutes
    Reaction temperature 37±0.1℃
    Temperature fluctuation ±0.1℃
    Operation Unit
    Software WindowsXP、2000
    Database SQL Server
    Data Storage Automatic store & copy; No time and volume limit; Lifetime preservation
    Print format Can be set up, offer several standard format
    Calibration mode Linear curve type: Single-point linear, two-point linear and multi-point linear none linear; Curve type: Logistic-Log 4P,Logistic-Log5p,Spline,index automatically use best calibration curve and standard
    Quality control methods: Real time, within day & between day
    Quality control diagram L-J、cumulative、twin plot
    Status display Real time monitoring of reagent residual volume。Running status of reagent tray, samples tray
    Adjustment Dynamic and real time display of running status; Intelligent carry over settings to adjust test sequence; original reaction data record; Detail profile of alert messages
    Setting Operation permission setting, Item setting, cross pollution setting, cuvette blank setting
    Water consumption:  <6L/h Power Supply: AC 220V±22V 50Hz±1Hz
    Frequency: Maximum 600VA Dimension: 782mm×581mm×545mm
    Net Weight: 60kg Accessory: Software

    Test Projects
    ► AMY、LIP
    ► GLU、GSP
    ► CRP、RF、ASO
