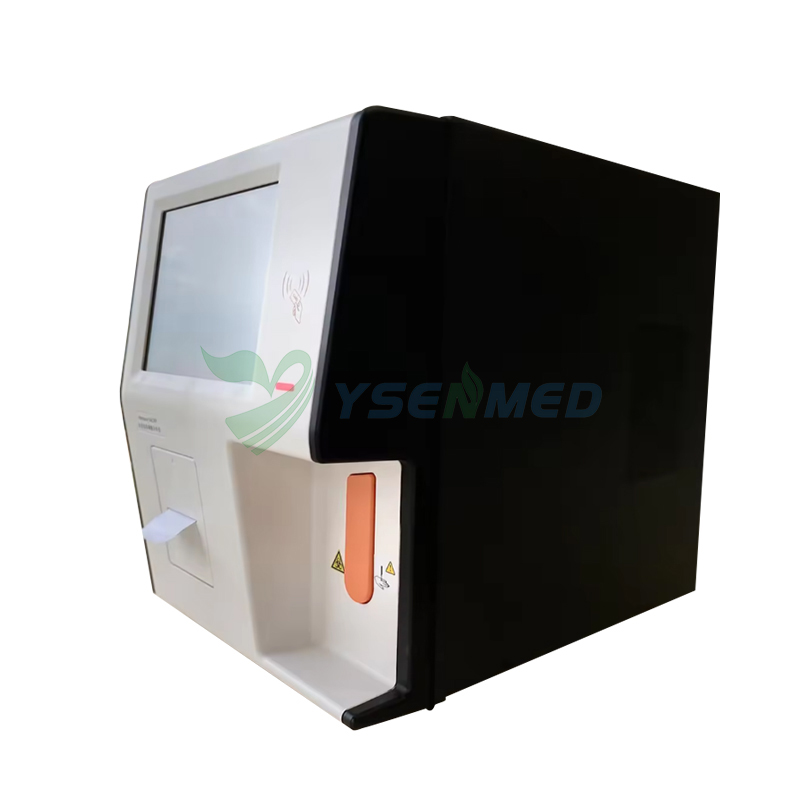

The brand-new automated 5-part differentials hematology analyzer.
Tri-angular laser scatter + Flow cytometry for 5-part WBC counting.
Independent BASO counting channel.
Whole Blood, Peripheral Blood, Pre-diluted blood.
Throughput with 60 samples/hour.
29 parameters (include 4 research parameters)
3 reagents with original QC and Carlibrators.
Specifications
Principles
Electrical impedance, Colorimetry;Laser scattering method
Parameters
WBC, BAS#, BAS%, NEU#, NEU%, EOS#, EOS%, LYM#, LYM%, MON#, MON%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC, ALY#, ALY%, LIC#, LIC%;
WBC Histogram, RBC Histogram, PLT Histogram; 2D DlFF Scatter gram x 3; 3D DlFF Scatter gram x 1;
Testing mode
CBC, CBC+DIFF
Sample consumption
Whole Blood: 15ul(CBC+DIFF/ CBC)
Pre-diluted 20ul(CBC+DIFF/CBC)
Reagents
RD-50 Diluent, RL-50D lyse, RL-50H lyse
Throughput
60 S/H
Test Linear range Carry-over CV(whole blood)
WBC 0-500x109/L ≤0.5% ≤2.0%
RBC 0-8x1012/L ≤0.5% ≤1.5%
HGB 0-250g/L ≤0.5% ≤1.0%
PLT 0-5000x109/L ≤1.0% ≤4.0%
Optional external devices
Bar-code reader, Mouse, Keyboard, External printer
Sample types
Whole Blood, Peripheral Whole Blood, Pre-diluted blood
System
Integrated windows system displayed by 10.4 inches color touch screen.
Bi-directional LlS communication
Link ports
LAN; USB x4
Working Environment
10°C~30°C; humidity≤85%
Data storage
100000 results
Power
110V-240V; 50Hz/60Hz; 400VA
Printer
Internal thermal printer
Size(mm)
365x 470x 525; Weight: 31kg
