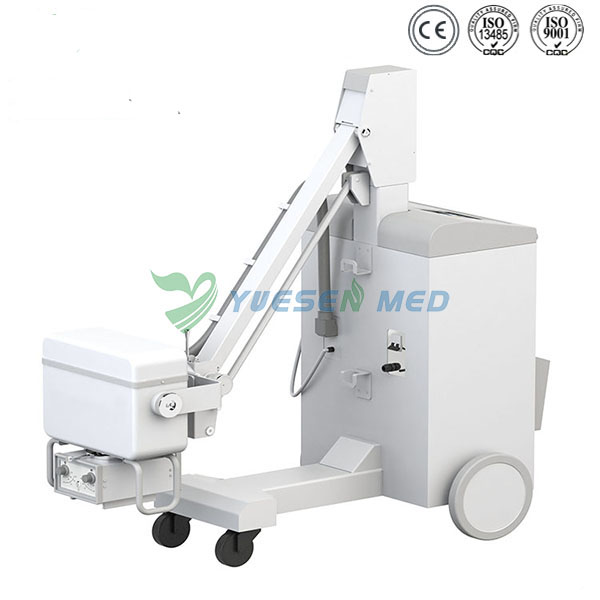

Technique Specification
Model |
YSX100GM |
||
Power |
|||
Input Voltage |
220V±10% |
||
Input Power |
7.5kW
|
||
Mains Frequency |
50Hz±1Hz |
||
Source Resistance |
≤0.5Ω |
||
Main Technical Parameters |
|||
Power Modules |
30kHz |
||
Filament Frequency |
20kHz |
||
Focus |
1.5mm |
||
Max. Generator Output |
5kW |
||
Max. X-Ray Tube Voltage |
120KV |
||
kV Range |
40~120kV |
||
mAs Range |
1~1200mAs |
||
Main Parameters Of Mechanical Parts |
|||
X Ray Tube Vertical Motion Range |
≥500~1750mm |
||
X Ray Source Components Around The Cross Arm Vertical Rotation:≥±90° |
|||
Exposure Size |
≥350mm*350mm(SID=65cm) |
||
Machine Main Function |
|||
Fault Detection Error Prompt Functions |
|||
ARP Human Anatomy Program Function |
|||
Parameter Calibration Function |
Combined X-Ray Tube Assembly
1,Adopt high frequency high voltage generator and combined X-ray tube assembly;
2,kV closed-loop control, stable output, good repeatability, quick response and high accuracy;
3,mAs digital closed-loop control technology and 32-bit microprocessor real-time control, which ensure the accuracy and repeatability of dosage;
hospital high frequency mobile x ray machine price
Inverter
1,Equipped with the functions of high voltage and over & under voltage protection, tube current over-current protection, output overload protection and fault prompt;
2,Perfect heat capacity protection function to protect X-ray tube target surface;
hospital high frequency mobile x ray machine price
Corrugated Pipe
Full consideration of hospital disinfection and cleaning, adopt high quality corrugated pipe, prolonging the service life of the equipment
hospital high frequency mobile x ray machine price
Switch
Using high quality switch, safe and reliable, stable quality
hospital high frequency mobile x ray machine price
Wheel
The machine moves very flexible, lightweight, even in a small space can also smoothly, quickly through
hospital high frequency mobile x ray machine price
X Optical Imaging
The high-frequency high-voltage technology and computer control technology integration, parameter, image definition
Touch Screen
1 | Touch screen regulation, color screen display, and dual core control |
2 | Anatomical procedures are established. The users can also change the parameters on their own |
