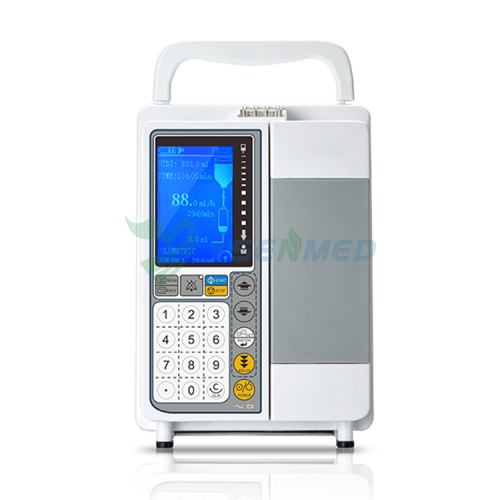

Infusion Pump YSSY-710

Model: YSSY-710
Double CPU, safter Infusion,  brightness LCD, display visually, numeric keypad, user friendly.
  • ModelYSSY-710
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • Share:
    Description Get Price Review(0)

    Specifications:
    Infusion Mode Volume Mode, Time Mode, Drug Mode, Night Mode, Bolus Mode
    Rate Unit ml/h, volume/time,d/min
    IV Sets Standard single use IV sets ( 10,15,20,50, 60d/mL, with diameter 3.4 ~ 4.5mm)
    Flow Rate 1.0ml/h~1200ml/h, 1.0d/min~400d/min
    Increment 1.0-100ml/h in 0.1ml/h step;100-1200ml/ in 1ml/h step
    Deviation Flow Rate:≤5%(after calibration)
    VTBI 0.1~9999.9 ml
    Total Volume 0.0~9999.9 ml
    Time 1min~>99h59min
    Purge Rate 600ml/h,display purge volume
    KVO 0.1ml/h~5ml/h,adjustable
    Keypad Numeric keypad, user friendly
    BOLUS Bolus function available, flow rate adjustable
    Night Mode Night mode ON, screen to be dim automatically in 5min standby time expired.
    Occlusion pressure detector Occlusion pressure detection,  40KPa~140KPa, 0-9 levels adjustable, dynamic pressure value display
    Air bubble Detector Ultrasonic detection, ≥50ul,Single bubble volume: 50~300 μl, 0-9 levels adjustable.
    Volume 1-10 levels adjustable
    Motor Anti-reverse Function Anti-reverse function to prevent upstream
    IV Set  Open system, accept all kinds of IV brands after calibration
    Self-Testing Self-Testing before startup and during infusion
    Audio Visual Alarm Message Air bubble, downstream occlusion, door open, infusion finish, standby time expired, battery low, battery empty, battery disengaged, AC Power disengaged, motor error, pump error, pressure sensor error, parameter error, system abnormal
    Screen 3.2inch brightness LCD
    Power Supply AC Power:100V~240V,50Hz/60Hz,≤25VA
    Battery Rechargeable Lithium battery, DC11.1V,3000mAh;operating time: ≥10h @25ml/h, displaying remaining battery
    Operation Condition Temperature:+5℃~+40℃, Humidity:20%~90%,Air pressure:70~106KPa
    Transport & Storage Temperature :-20℃~+55℃,Humidity:10%~95%,Air pressure:50~106KPa
    Classification Type CF, Class II,  IPX3, ISO13485, CE, IEC60601
    Specification W*H*D:150mm×140mm×210mm;Weight:1.7kg
    Warranty: Two years, battery one year
    Features:
    1. Double CPU, Safter Infusion
    2. Brightness LCD, Display visually
    3. Numeric Keypad, User Friendly
    4. 10 Level occlusion pressure detection adjustable
    5. Occlusion, Air-in-line, Audio Visual Alarm Volume: 10 settings
    6.3000Ah Lithium Battery, Backup Life: >=10hours
    7. KVO adjustable 0.1-5ml/h
