Laser Photodisruptor for Ophthalmology YSMD-920

Model: YSMD-920

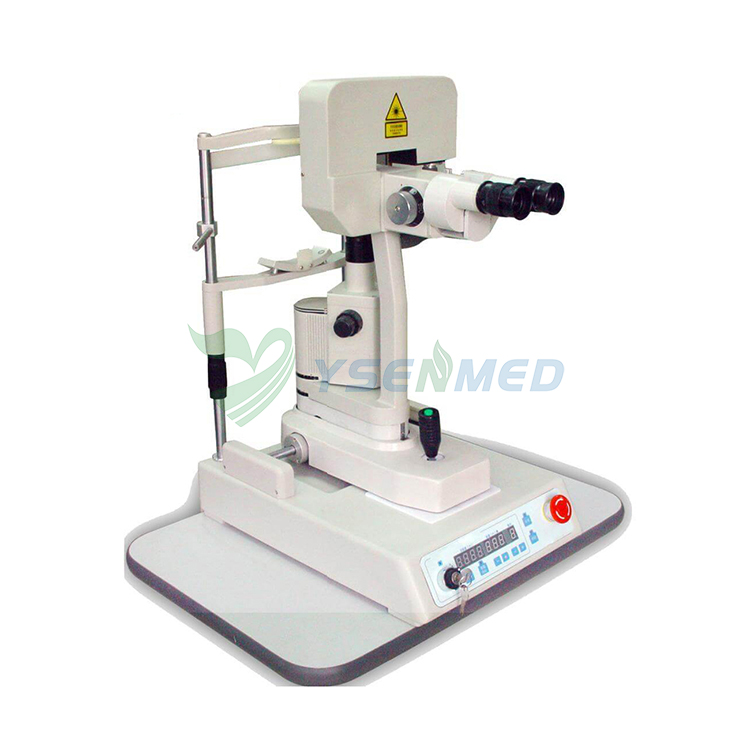

Laser Photodisruptor for Ophthalmology YSMD-920
  • ModelYSMD-920
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • Share:
    Description Get Price Review(0)

    ◆ Easy setup for installation and maintenance purpose
    ◆ Fixed on mobile wheel stand for transportation
    ◆ Height adjustable stand
    ◆ Shorter movement for slit lamp releases back fatigue
    ◆ Easy operating console
    ◆ Emergency Stop Button
    ◆ Treatment Room Connected Button
    ◆ Adjusted focal plane for laser beam and aiming beam
    ◆ Adjust diopter for slit lamp binocular microscope only to focus the laser & aiming beam on the target
    ◆ Highly concentrated laser beam and quick dispersion
    Laser Type: Nd:YAG, Q-Switched
    Wavelength: 1064 nm
    Mode: Q-Switch
    Pulse Output: 1,2,3 pulses per burst
    Pulse duration: 4.5 ns
    Pulse Repetition Rate: 2.5Hz
    Output Energy :
    A)  1 pulse maximum output: 11mJ
    B).  2 pulse maximum output: 9mJ
    C).  3 pulse maximum output: 28mJ
    D).  Output Energy Regulation: 100%~6% adjustable by 7 steps
    Cone Angle: 18°
    Spot Size: 30 µm
    Aiming Beam Wavelength: 633nm
    Aiming Output Power PC: < 0.4 mW
    Cooling system: Air cooled
    Machine packing size: 76.5*65*50mm
    Gross Weight of machine: 25kg
    Packing size of table: 69*58*42cm
    Gross weight of table: 23kg
