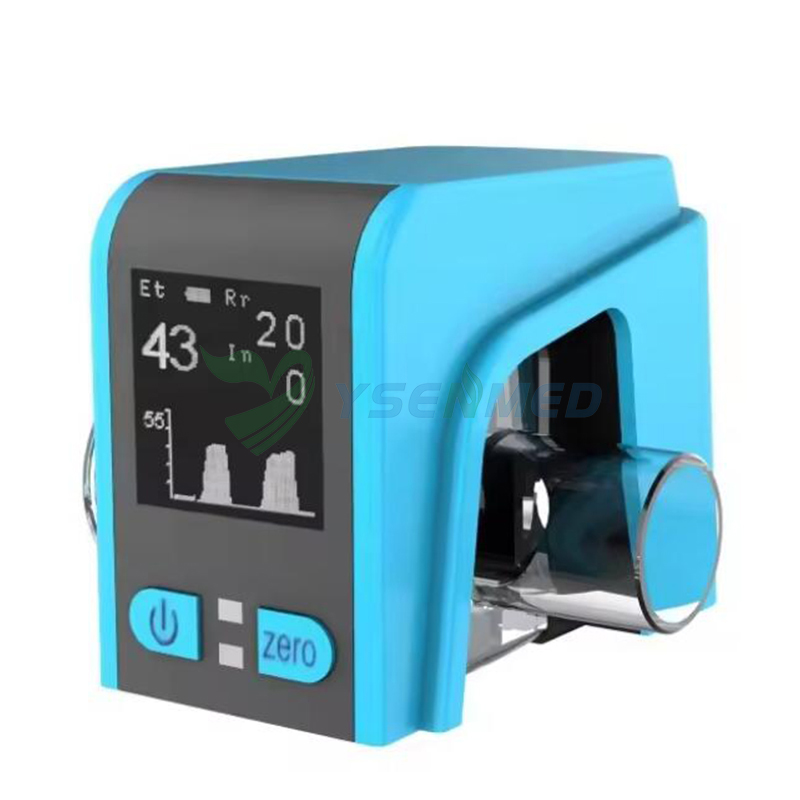

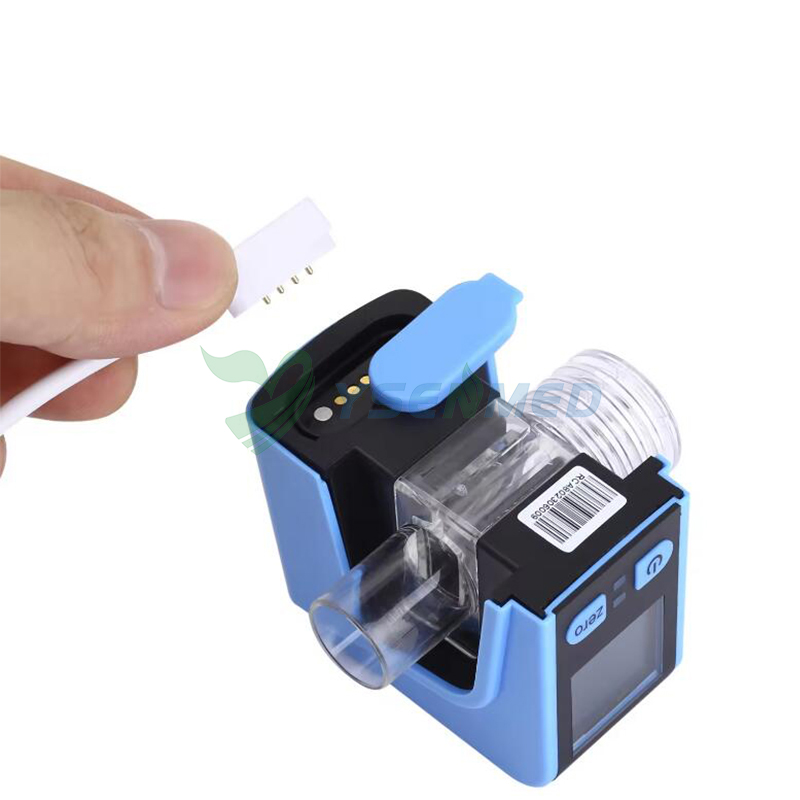

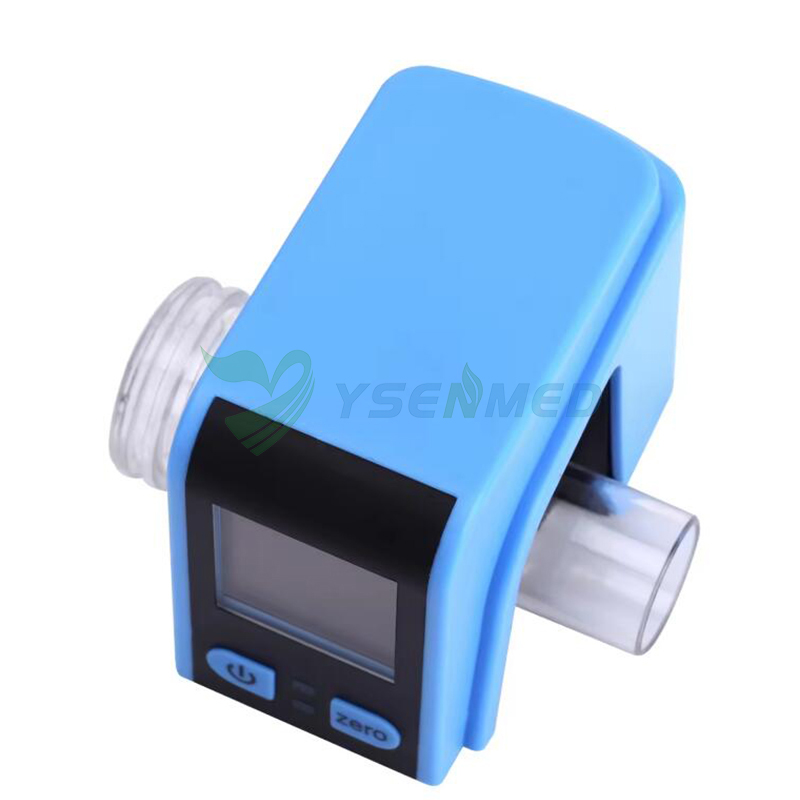

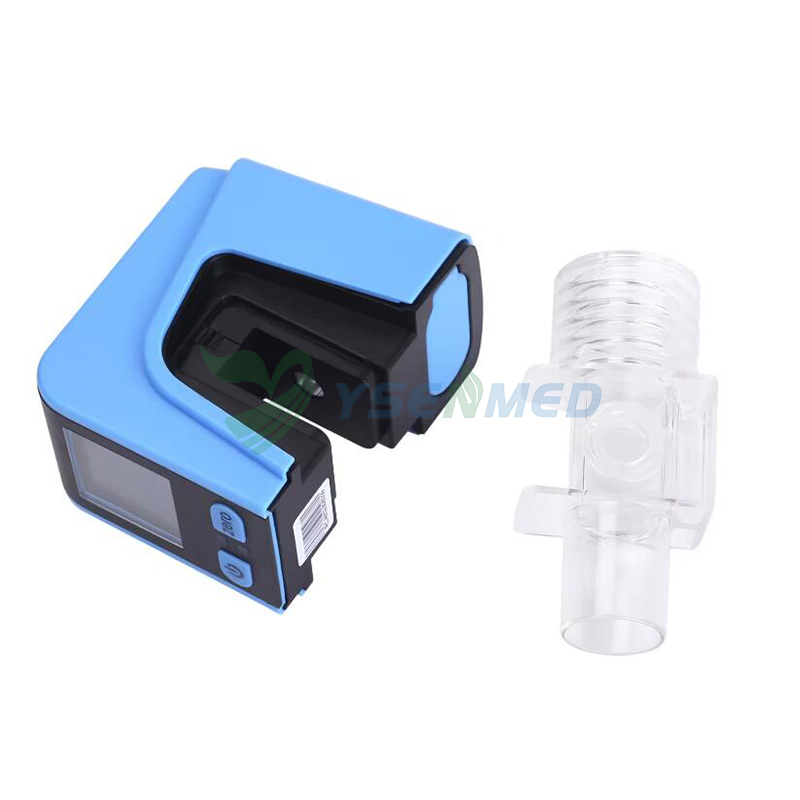

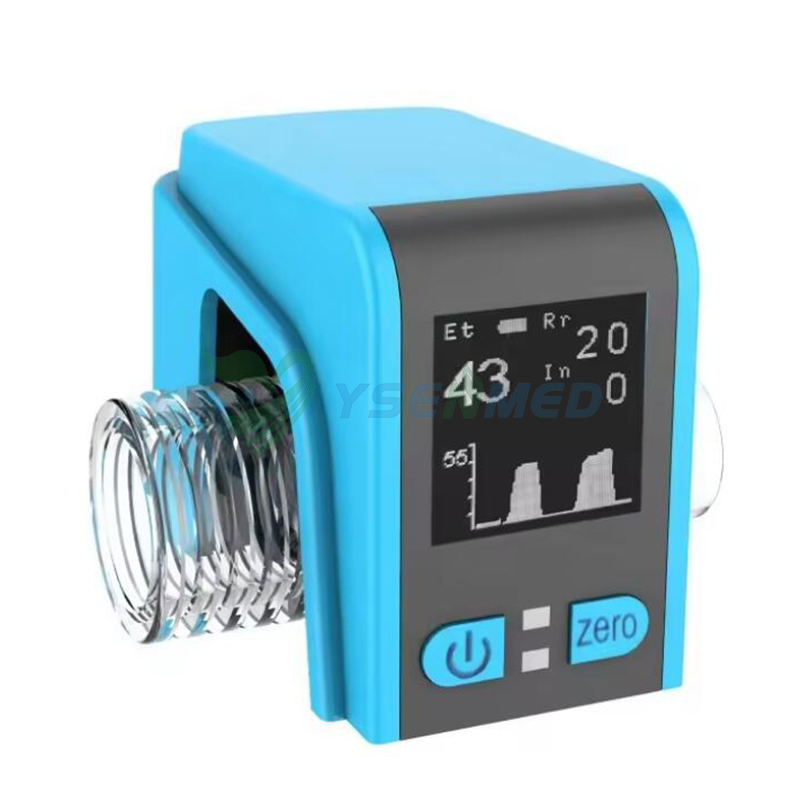

Product Introduction
YSPM-CA80 has becoming the smallest End-tidal CO2 Monitor in the world, Achieving the measuring of EtCO2 and Respiratory Rate in all Respiratory Conditions. Its small size, light in weight and low energy consumption, makes it
flexibility and convenience obviously. Suitable for CPR and emergency
transportation.
Application Field
One-key operation
Small in size, light in weight, only 60 grams
Lower power consumption, up to 6.5 working hours
Built-in lithium battery, waterproof IPX6
Large font display and waveform interface Unique inhaled carbon dioxide function
Constant temperature control system to prevent water vapor interference
Technical Specifications
|
Transducer Type
|
YSPM-CA80 MICRO MAINSTREAM CAPNOMETER
|
|
CO2 Accuracy
|
0 - 40 mmHg ±2 mmHg
41 - 70 mmHg ±5% of reading
71 - 100 mmHg ±8% of reading
|
|
Respiratory Rate
|
Range Accuracy
3 - 99 BPM ±1 breath
|
|
Alarm
|
Check adatper, No breath, Battery too low, ETCO2 too low,
ETCO2 too high, INCO2 too high, RR too low, RR too high
|
|
Calibration
|
No routine user calibration required, the sensor automatic zero when plug in the adapter
|
|
Power Requirements
|
Battery： Rechargeable Li-Battery
Input Power: 5V,1A
|
|
Dimension
|
Size : 57(L)X 57(W)X 44(H) mm
Weight : 60g(include battery and adapter)
|
|
Regulatory
|
Designed to comply YY0601 and ISO21647.
|
