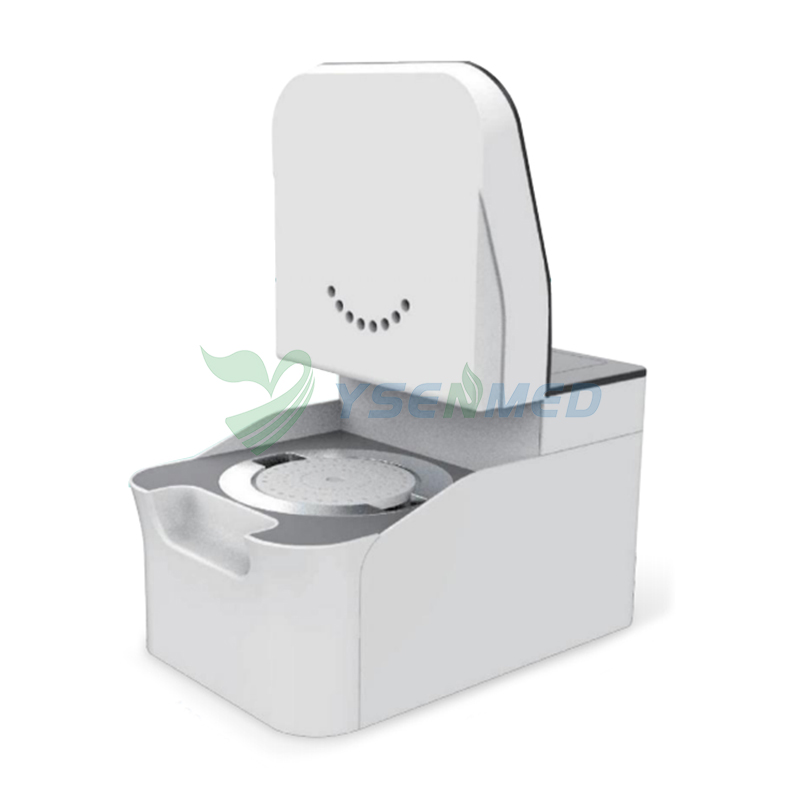

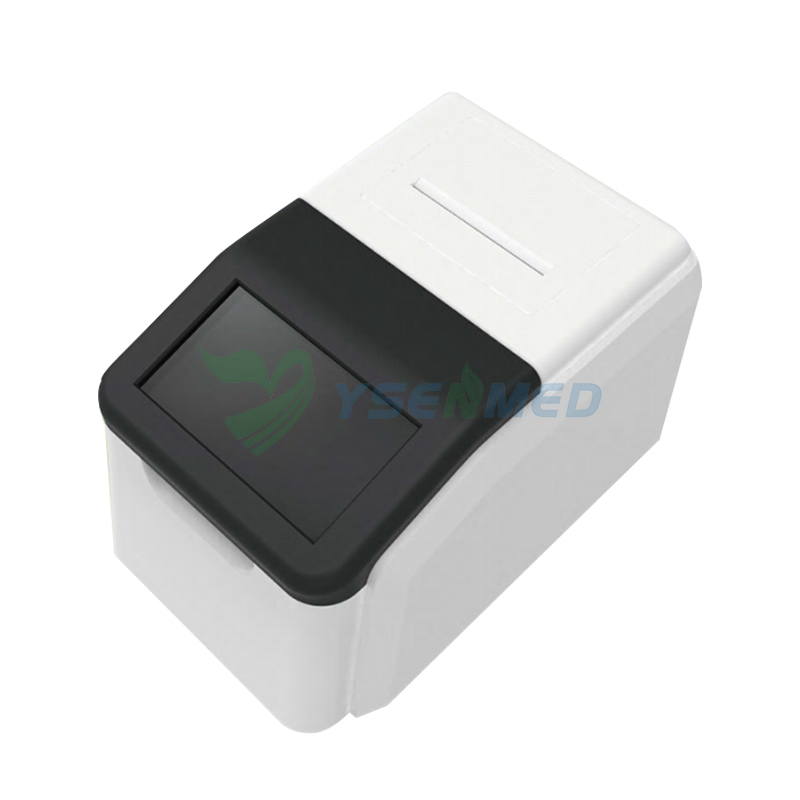

Chemistry Analyzer YSTE-DB100 is used for the quantitative analysis of analytes in human samples. This instrument is suitable for laboratories with professional testing capabilities in medical institutions, such as central laboratories, outpatient and emergency laboratories, clinical departments, physical examination centers, etc. For in vitro diagnostic use only.
Features
1. Whole blood sampling
It is commonly used in point-of-care testing and emergency situations where quick results are required.
2. Internal centrifuge
This saves time and reduces the risk of sample contamination.
3. Free combination of lyophilized discs
The lyophilized discs has a flexible combination method, which can be freely combined according to actual needs and research purposes.
4. Instrument miniaturization, lyophilized reagent pre-packaged design
Efficient use of reagents, minimizing waste and reducing overall testing costs
Easy to ship and valid for 12 months
5. Fast, accurate and portable
The analyzer was designed to be portable and have a small footprint, ensuring that it can be used anywhere at any time.
Specifications
Sample type Anticoagulant whole blood, plasma, serum, capillary blood
Test principle Photoelectric colorimetry
Connection On-line of LIS system
Sample volume 140μL
Test time ≦15min
Code identification Automatic identification of QR code for reagent disc
Reagent type Lyophilized reagent
Light source LED lamp
Printer Built-in thermal printer and external printer (wireless printer driver)
Operating system Android 5.1 (5-inch)
Memory capacity 1GB, with expandable 32GB TF card
Supply voltage AC 100V-240V, 50-60HZ
Size 270mm*180mm*155mm
Weight 3KG, with built-in adapter
