Ophthalmic Scanners

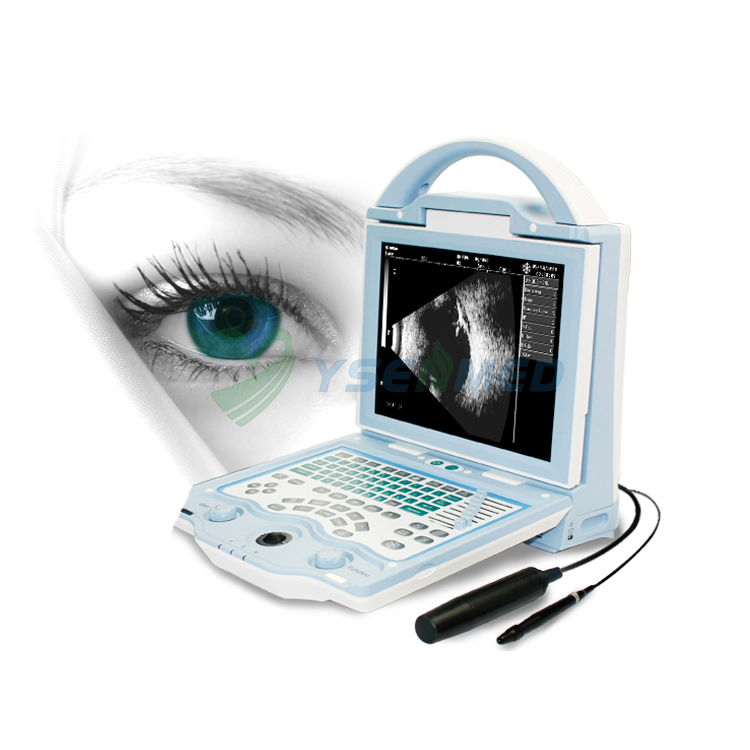

Portable Ophthalmic A/B Scan Optical Ultrasound YSODU5

Model: YSODU5
Portable Ophthalmic A/B Scan Optical Ultrasound for sale with good price.
  • ModelYSODU5
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • Share:
    Description Get Price Review(0)

     Adopt ARM9 Embedded Control Systems, FPGA signal processing system and elaborate select-ed ultrasonic hardware system.
     10.4 inch high resolution LCD screen.
     Menu operation Language: Chinese/English.
     Double probe sockets.
     A mode probe: 10MHz, imported probe with fixation light.
     B mode probe: 10MHz, imported transducer.
     Display mode: B, B/B, 4B, B/A, A.
     Gains range: 0--120dB.
     Dynamic range: 30-100dB, visual and adjustable.
     Gray: 256.
     Intelligent TGC adjustment: 8 segments.
     Build-in D disk: 4GB, save mass data, images, reports, etc.
     Report function: print screen, IOL report, case report with picture, etc.
     A scan parameter:
     Resolution: 0.01mm.
     Gain adjustable: 0-120dB.
     Measurement range: 12-43mm(1640m/s).
     Accuracy: ±0.02mm.
     Eye mode: normal/aphakia/dense cataract/PMMA, Acrylic & Silicon for Pseudo Phakic eyes.
     Measuring Mode: Contact and Immersion, automatic and manual.
     Measurement methods: A single-point measurementunder A mode; five-point measurementunder A mode
     Calculation: std. deviation, average, automatical measuring 8 groups and average, accompany waveform, results correctable.
     B scan parameter:
     Scan mode: High accuracy stepping motor drive sector scan.
     Scan Angle: 53°.
     Display Depth: 056mm.
     Gray: 256.
     Depth seletion: 8.
     Frame correlation: 4.
     Edge enhancement:4.
     Compression Curve: 4.
     Post-processing: 8.
     100 frames permanent image storage.
     Disk management.
     General Measurement: multi-electronic-rule to measure distance, circumference, area(trace method, ellipse method),volume (ellipse method), angle , histogram, profile , stenosis and curvature etc.
    Standard configuration:

    1.  Main unit: 1 pc
      2. 10MHz mechanical sector B probe: 1 pc.
      3. 10MHz A probe : 1 pc.
      4. Network cable: 1pc

    Optional configuration:
    1. Large lithium battery 4400mAh
    2. Trolley
    3. Ethernet switch
    4. Battery charger
    5. Foot switch
