Elisa/Microplate Reader

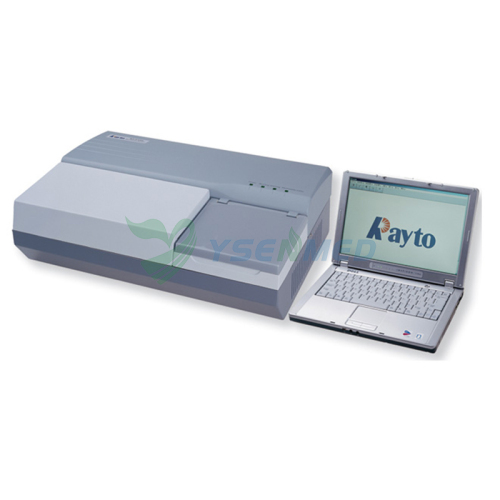

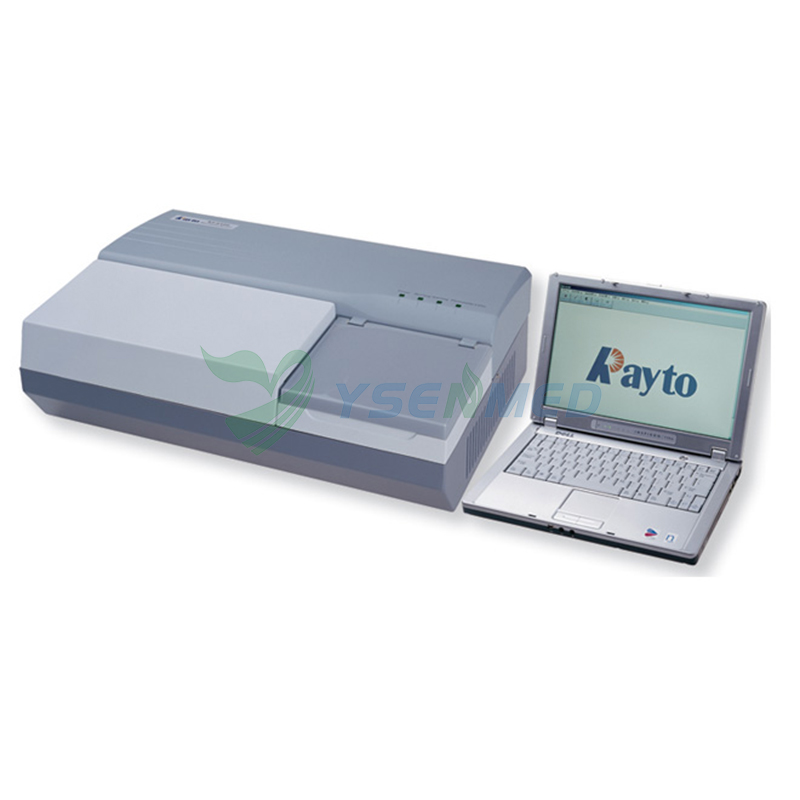

Rayto RT-6100 Laboratory Microplate Reader

Model: RT-6100
  • ModelRT-6100
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • Share:
    Description Get Price Review(0)


    * PC controlled system, Windows XP

    * 8-channel optical fiber system enables 6 secs’ reading for 96-well plate

    * Calculation modes include ABS, Cut-Off, Single standard Curve, Multi-percent Linear,Log, Exponential, Power and 4PL regression etc

    * Up to 12 different tests can be performed in one plate

    * Powerful laboratory management software stores up to 100 programs and 100,000 results

    * Powerful QC programs including Westguard Multi-rule and Instant method, automatic alarm

    * Multiform test reports output

    * Lamp saving and plate shaking

    * Save data automatically when power off unexpectedly

    * Compatible with all popular external printers

    * Powerful internet connection enables remote data sharing and OS update

    * Multi-language software available on request



    Absorbance range: 0-4.000Abs

    Resolution: 0.001Abs(displayed),0.0001Abs(calculated)

    Accuracy: ±0.003Abs

    Type of Microplate: Standard with 96-well or other kind of microplate and strip

    Optic System: 8-channel optic fiber system

    Light Source: Halogen lamp, 6.5V/19W

    Wavelengths: 405, 450, 492, 630nm, 4 more filters optional

    Wavelength Accuracy: ±2nm

    Band Width: <8nm

    Methodologies: End Point fixed time, Kinetic

    Calculation Method: ABS, Cut-Off, Single Standard Curve, Multi-Percent, Percent Log, Linear, Exponential, Power, 4PL Regression

    Reading Speed: 6 seconds for 96 well plate(single wavelength)

    Shaking Plate: Shaking time and speed adjustable

    Operation: PC operation, bidirectional communications

    Memory: More than 100 programs, up to 100,000 test results

    Printer: All printers compatible with Windows

    Interface: RS-232

    Language: English or any language on request

    Power Supply: AC 100V-240V 50Hz/60Hz

    Net Weight: 6.2KG

    Dimensions L x W x Hmm): 454×295×146
