Standard Hardware include:

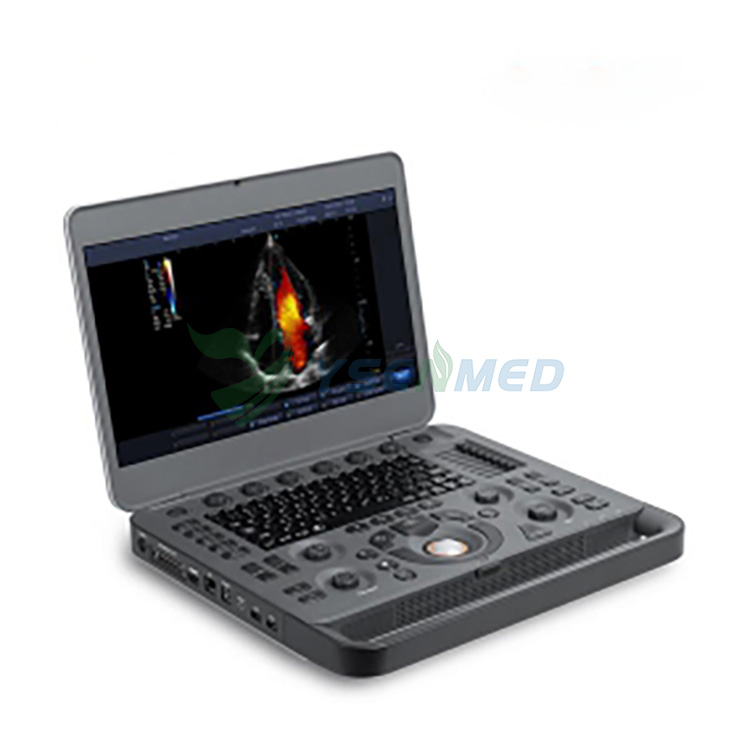

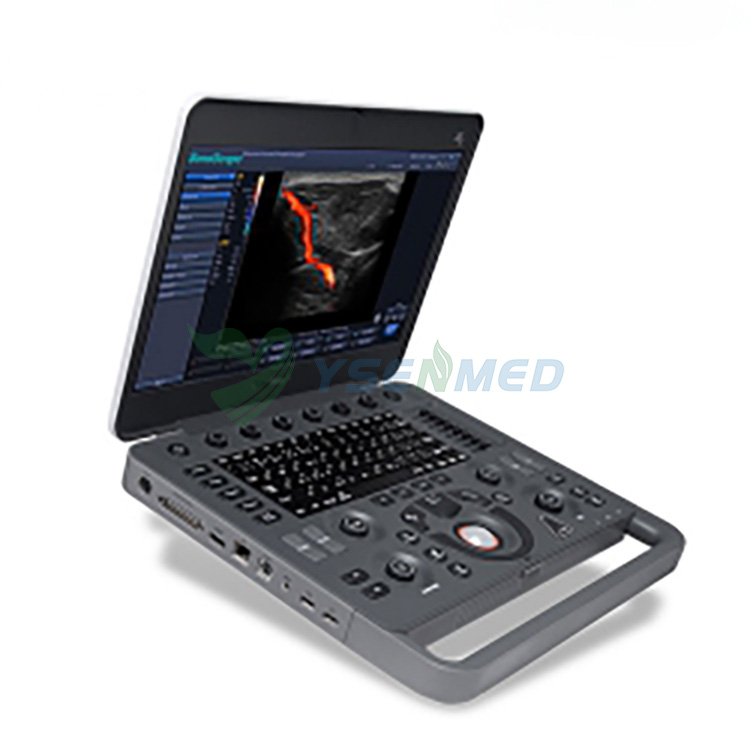

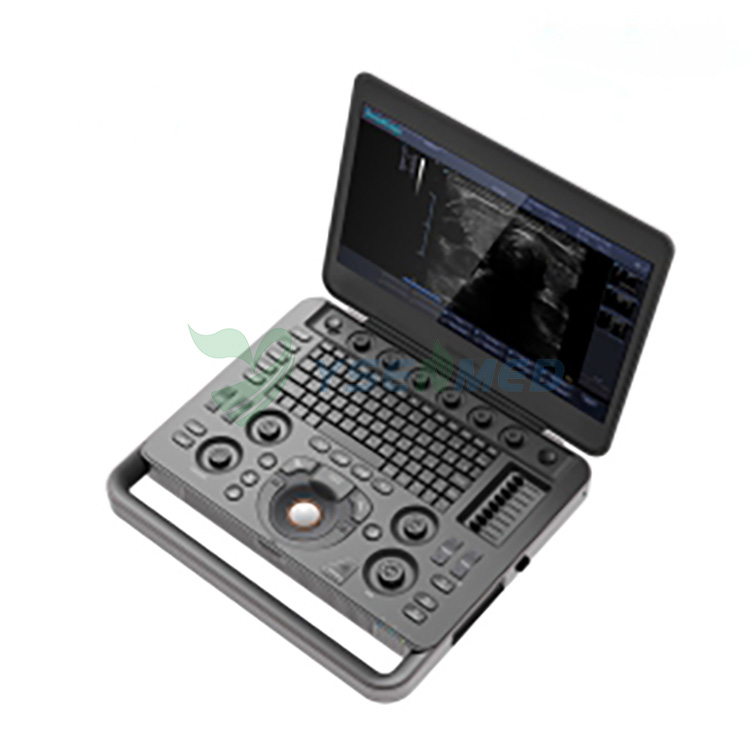

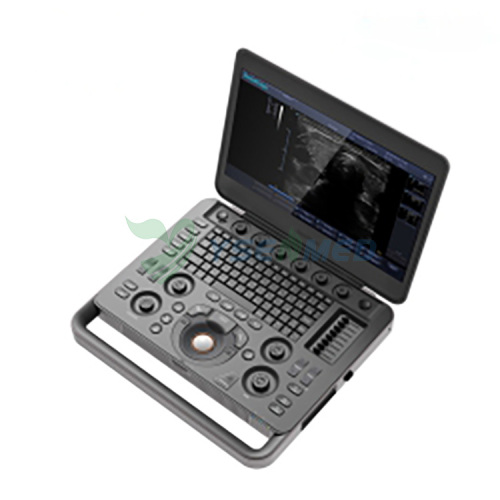

Sonoscape X3 main unit

15.6" High Resolution LCD color monitor (with auto-adaptive LED backlight)

One transducer connector

USB 2.0/Hard Disk 500 G

Standard Battery

Adaptor

Standard Software include:

Imaging modes: B/ 2B/ 4B/ M/  CFM/ PDI/ DirPDI/ PW/ CW

Dynamic Multi-beam Technology

Tissue Harmonic Imaging

Pure Inversion Harmonic Imaging

Tissue Specification Imaging

Spatial Compound Imaging

Widescan: Trapezoid Imaging

Convex Extended Imaging

μ-Scan: 2D speckle reduction technology

PW Auto Trace

TEI Index

DICOM 3.0

Auto: Auto optimization forB/ M/ PW/ CW

TGC: Time gain compensation

LGC: Lateral gain compensation

SR Flow

Triplex

B/C dual live

Standby Mode

2D Panoramic Imaging

Show Galary

2D Steer

VisNeedle

Wifi

Stardard Configured Transducers:

Linear array L741(Vascular, Small Parts, MSK etc.), 4.0-16.0MHz/ 46mm

Convex array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm

Optional Configurations

Color M Mode

Tissue Doppler Imaging

Anatomic M Mode

B Mode Prospective Saving

Transducers

Linear array L741(Vascular, Small Parts, MSK etc.), 4.0-16.0MHz/ 46mm

Convex array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm

Micro-convex array C613 (Cardiology, Pediatrics), 4.0-13.0MHz/ R14mm

Endocavity EC9-5 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz

Endocavity 6V1 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/ R11mm

Phased array 7P-B (Cardiac, Transcranial), 2.0-9.0MHz

Phased array 3P-A (Cardiac, Transcranial), 1.0-6.0MHz

Accessories

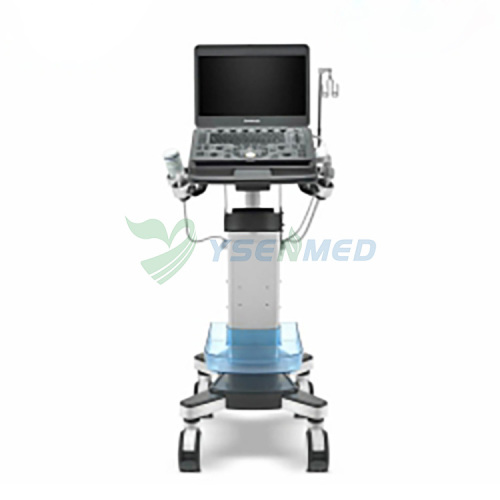

Trolley (with cable management)

Backpack

Large Capacity Battery

Color ink-jet printer: HP Officejet Pro 8000/HP Office jet Pro K5400

B/W video printer: SONY UP-D897/SONY UP-X898MD

Transducer extender

Footswitch

I/O Docking Extender (with ECG package)

Keyboard Cover

External DVD/VCD

Bluetooth Controller

Biopsy Guides

NGBL741

NGBC613

NGB3C-A

NGB3P-A

NGB6V1

NGBEC9-5
