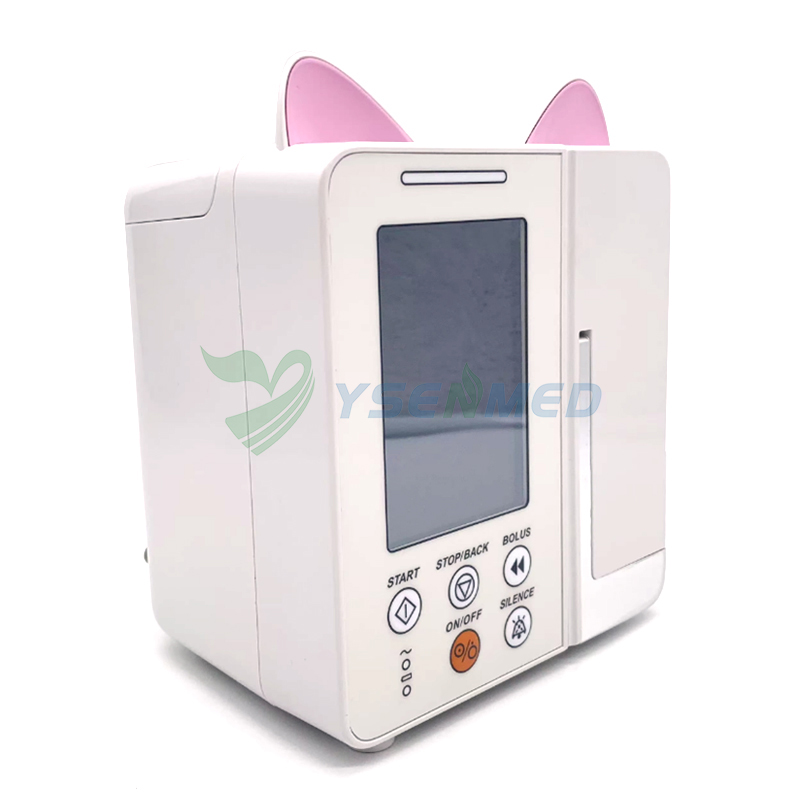

New Design
Exquisite and mini, portable
3.5"Large colorful touch-screen and key-board, dual control methods.
Simple and Convenient
Auto-lock Screen
The lock screen duration can be adjusted in multiple levels; pre-vention for operation errors.
History Record Cassette
Up to 50000pcs records.
Trackable treatments are ensured.
Night Mode
Design for night time safe operation.
System self-test
System self-test is conducted every time turning on, safeguard for every-time use.
Accurate and Safe
Large capacity lithium battery
1P44 High-level dust-proof and waterproof
Configuration
Applicable Infusion Sets 1ml/15d, 1ml/19d, 1ml/20d, 1ml/60d
Flow Rate ml/h mode: 0.1~1200ml/h
BOLUS 0.1~1200ml/h (in 0.01ml/h increments)
VTBI(Volume to be infused) 0.1~100ml (in 0.01ml increments)
FF rate 0.1~1200ml/h (in 0.01ml/h increments)
VTBI 0.1~9999.99ml (in 0.01ml increments)
Cumulative Infusion Volume 0~9999.99ml (in 0.01ml increments)
Rate(ml/h) Accuracy ≤±5% (after calibration)
Occlusion Pressure 5 occlusion pressure levels (20,50,80,110,130)kPa
Dimensions 131.5mm(L)*101mm(W)*163.8mm(H)
