Product Description

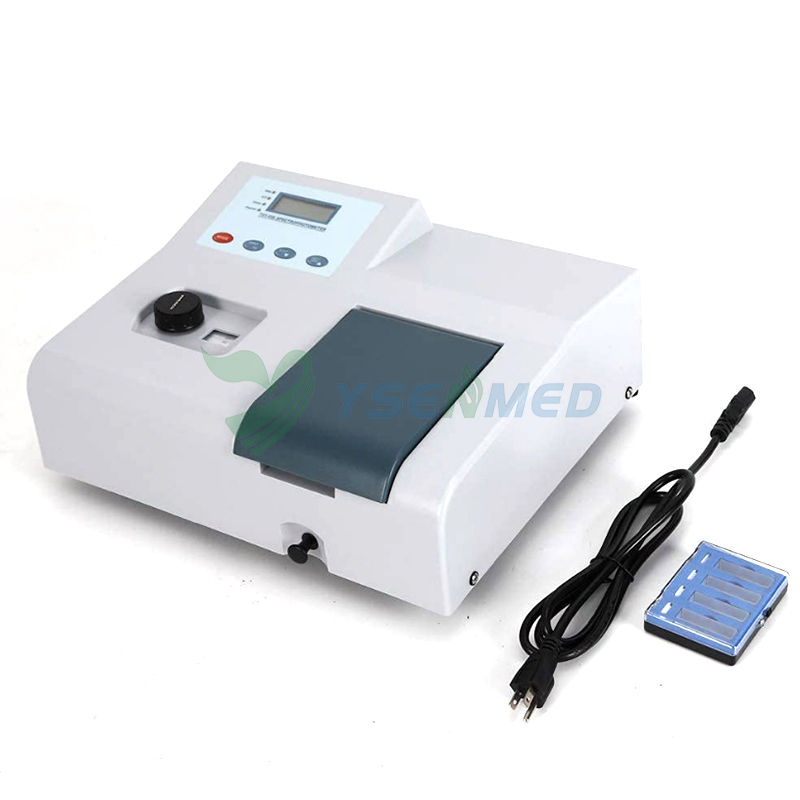

YSTE-V1000Y series is a simple single beam spectrophotometer. The wavelength is set manually from the dial on the front panel. Direct readout of transmission or absorption on the LED display. Measured values can be transferred to PC via Rs232 port for further analysis. Low price and simple design make the model ideal tool for education or routine analysis.
Applications
Education in universities and colleges, food & Beverage production and quality control, Agricultural monitoring
etc.
Specifications
Model YSTE-V1000Y YSTE-V1100Y
Optical system Single Beam, Grating 1200 lines/mm
Wavelength Range 350-1020nm 320-1020nm
Spectral Bandwidth 6nm 5nm
Wavelength Accuracy ±3nm ±2nm
Wavelength Repeatability 1nm
Photometric Accuracy ±1%T ±0.5%T
Photometric Repeatability 0.5%T 0.2%T
Photometric Range 0-200%T,-0.3-3A
Stray light 0.5%T 0.3%T
Stability 0.004 A 0.002 A
Baseline Flatness ±0.002A ±0.002A
Noise ±0.001 A
Wavelength setting Manual
Work Mode T, A, C
Light Source Tungsten lamp
Display 4 LCD
Detector Silicon Photodiode
Output RS-232 port
Power AC 220V/50Hz or AC 110V/60Hz
Shipping size 520*450*320mm
Gross Weight 10kg
