Technical Parameters
|
|
Extended range function:
|
If it is not selected, AC output restrictions smaller than maximum output 20 dB
|
|
Input :
|
pure tone, warble tone ±5%, 5Hz Sine wave frequency modulation.
|
|
Masking :
|
Both air conduction and bone conduction can do masking
|
|
Computer Interface:
|
USB data transfer interface, can transfer data to computer, and also can set up personalized print reports.
|
|
Output :
|
Air conduction earphone(L/R), Bone conduction earphone(L/R), Insert earphone, Insert masking.
|
|
Transducer :
|

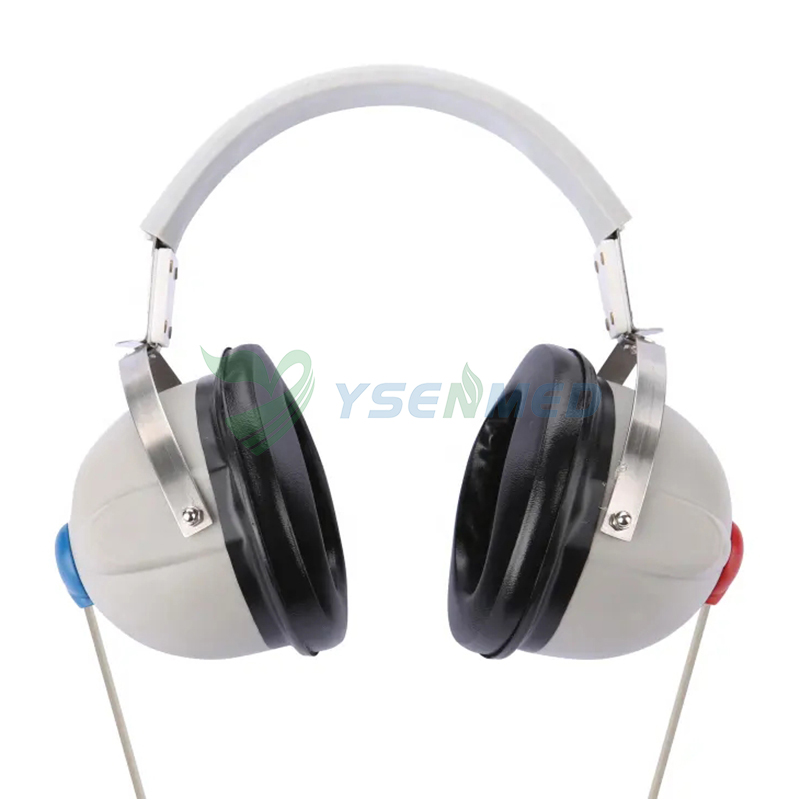

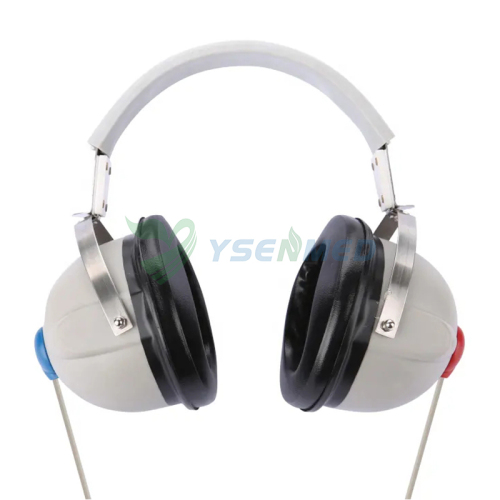

TDH 39 Air conduction earphone (standard configuration)
Ear~Tone 5A Insert earphone (Optional)

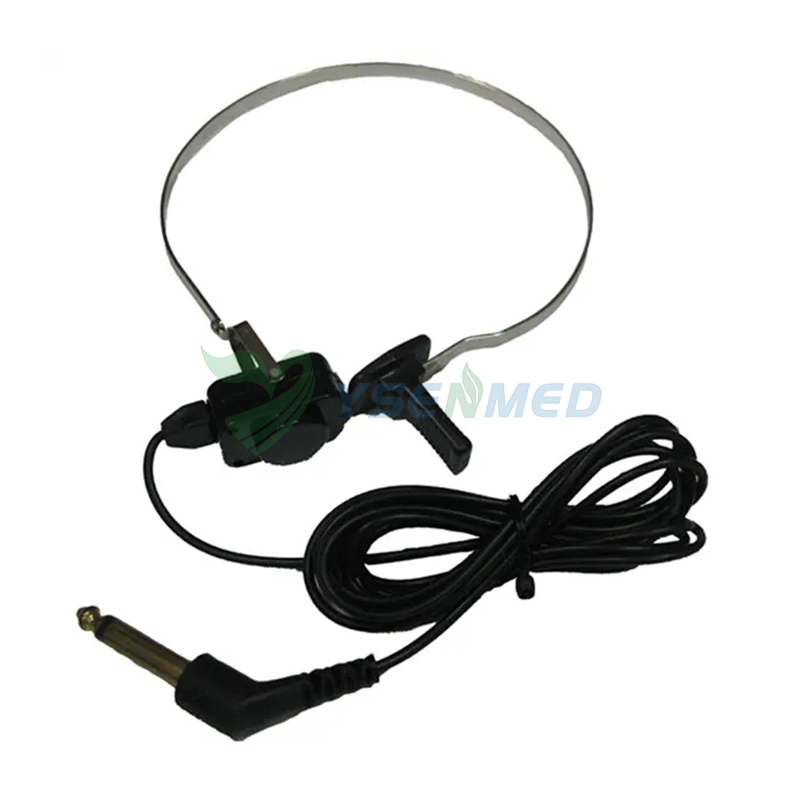

B71 bone conduction earphone (standard configuration)
|
|
Monitor function:
|
Optional
|
|
Feedback words :
|
Built-in feedback words microphone. 50-90 dB SPL can be continuous adjust in panel.
|
|
Send test voice:
|
Manual or automatic/ Monopulse/ Multiple-pulse
|
|
Frequency selection :.
|
If you need to fast test, you can select 250 Hz,750 Hz,1500Hz, 4k Hz or 6k Hz
|
|
Display :
|
Letter-figure
|
|
Patient signal:
|

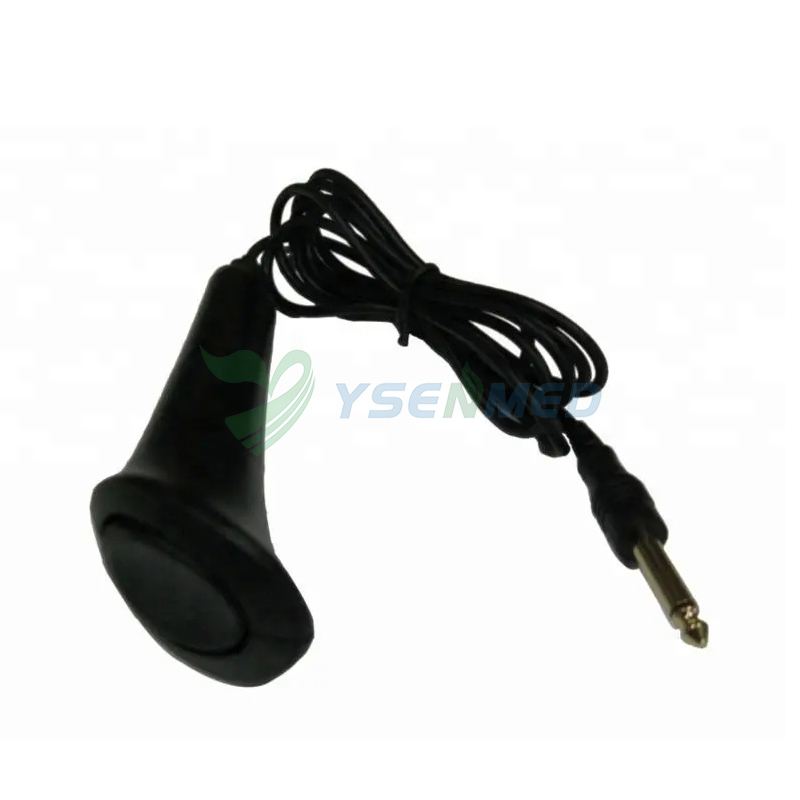

Responser
|
|
Structure :
|
Engineering plastic shell
|
|
Attenuator control :
|
Standard rotary switch (can choose Push-button switch)
|
|
Power supply:
|
Outer type regulated power supply (standard configuration), 220-230V,50-60 Hz
|
|
Fuse :
|
T2A Built-in fuse
|
|
Size :
|
45cm*30cm*7cm
|
|
Net Weight :
|
1775g
|
|
Standard accessory:
|
TDH39 Air conduction earphone,
B71 Bone conduction earphone,
Responser,
power cable,
USB cable,
CD software,
Audiogram.
|
