| Specification: |
| Model Number : YSPD-HS4000 |

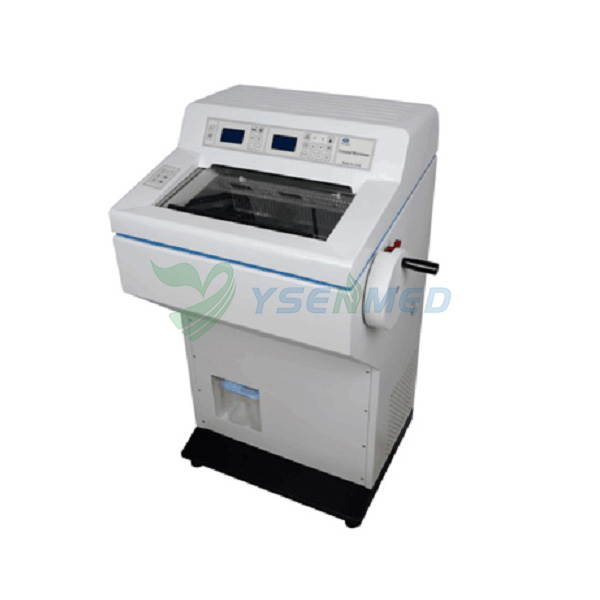

| Short Desc : Semi-automatic Cryostat |
| Setting range of section thickness :0 um - 100 um |
Freezing chamber
The range of temperature setting : ﹣35 ℃ to 40℃ adjustable
Defrost : Manual / Auto
Refrigerating capacity : 690 W
Refrigerate :R449A/400g±5g |
Quick -freezing shelf
Minimum temperature :﹣40 ℃
Number of specimen holder freezing points : 18
Number of semi-conductor freezing points : (switchable) 2 |
| Vertical specimen stroke : 59mm±0.5mm |
| Specimen’s horizontal stroke : 25mm±1mm |
Specimen’s max size : 55 mm X 55 mm
Specimen clamp ‘s max adjustable angle : 12°for X＆Y axis, 360°for Z axis
Sample slow forward and rewind speed : 300μm/s
Sample fast forward and rewind speed：900μm/s |
| Size without packaging (Including hand wheel)：780×700×1280 mm |
| Empty weight, without packaging：140kg |
| Features: |
| © Defrost automatically / manually ;Hibernation automatically / manually ,wake up in 15 minutes ;UV sterilization ;Semi-conductor refrigerant ;Slice number and thickness calculation ;2 movement speeds of specimen clamp. |
| © one-time injected model cover ;Anti-fog heating glass design ;Chromatic liquid crystal touch screen . |
© Microtome :
light and smooth handwheel with locking device on it ;Specimen clamp enables to adjust triaxially with a block in the centre to go back High precision guide rails made in Germany make transmission smooth durable and be able to cut hard sample ;Retraction Freezing chamber; Extra large chamber with wide freezing shelf may hold 20 specimen discs meanwhile .With waste tray and instrument rack . |
© Blade holder :
Wide or narrow blades optional ;A anti-fatigue cam lock ensures blades clamp tight;Blade clamp can be moved horizontally on the guide rail for safety and making full use of a blade ;Glass anti rolling plate to adjust angle and gap with pressing plate ;A pushing rod pops the blade out . |
© Electrical :
Security type: l category ,B type ;Voltage frequency :AC 220V , 50Hz (±10% ) Or AC 110V , 60Hz (±10% );Input power :650 VA |
| Packing Information: |
| Weight : 170kg |
| Packing : In wooden case |
