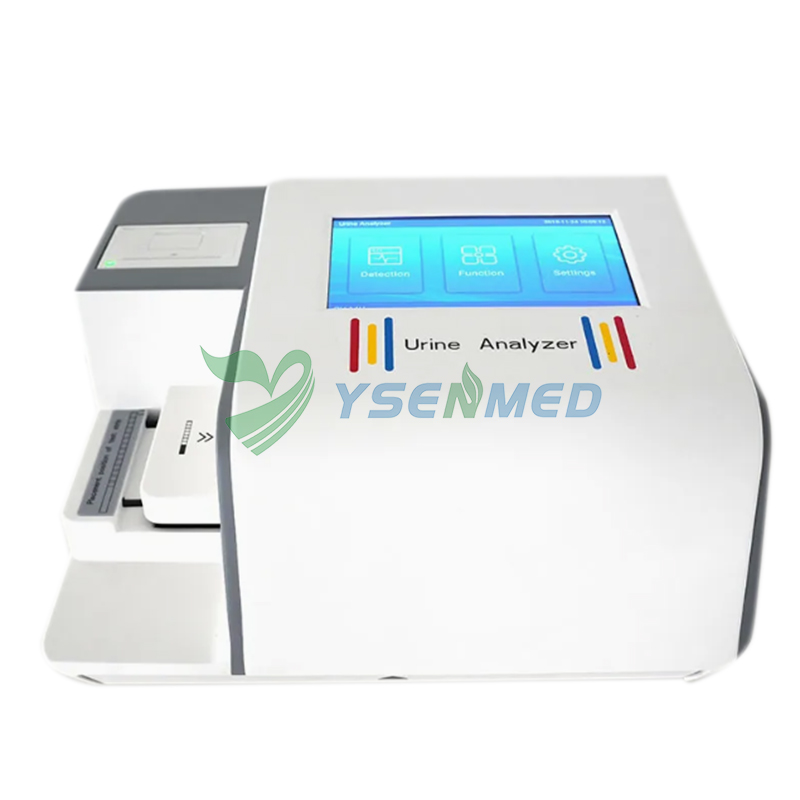

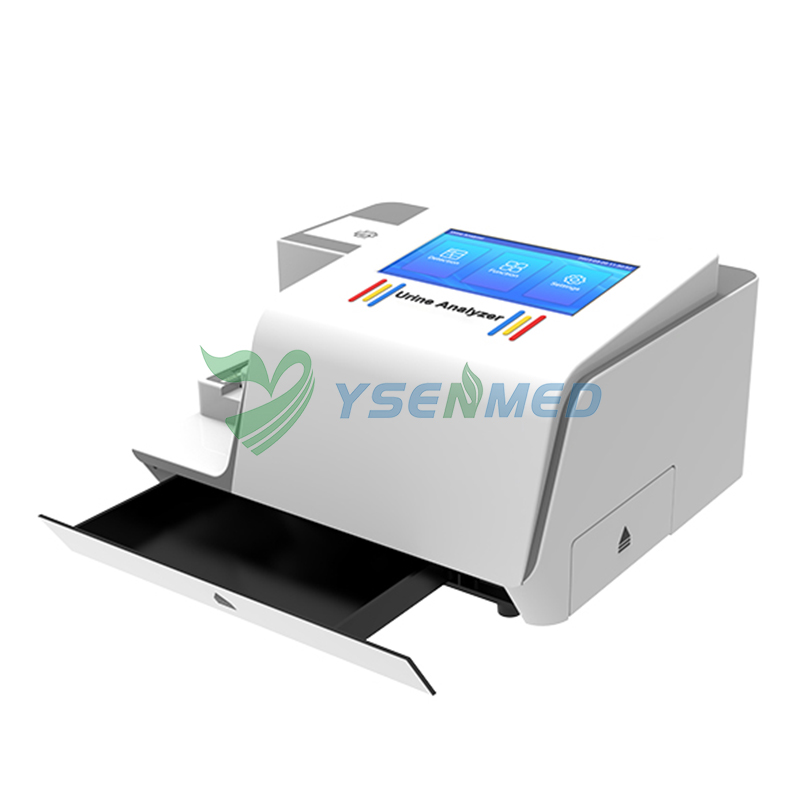

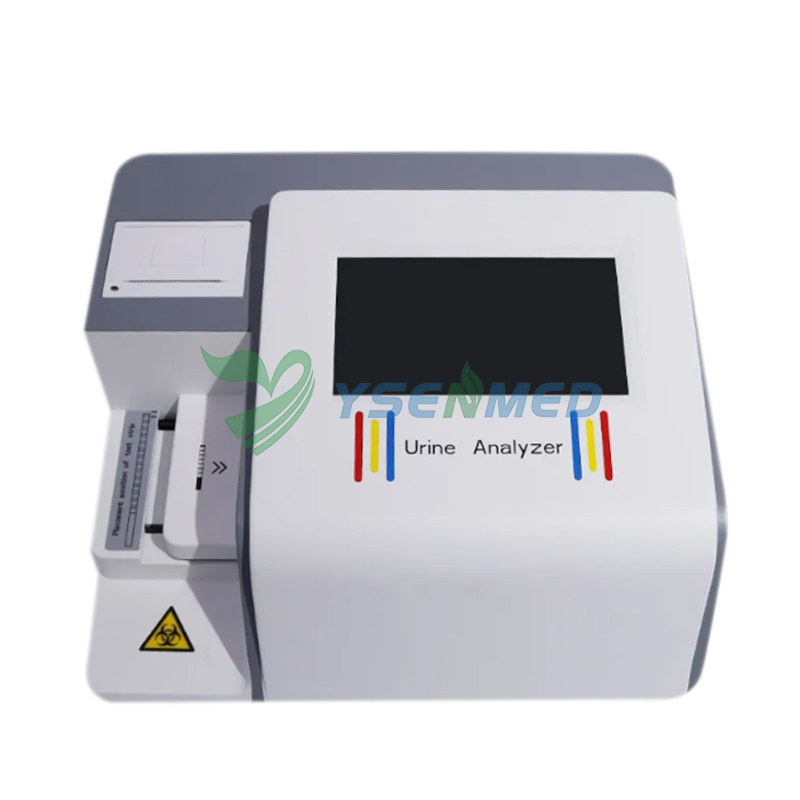

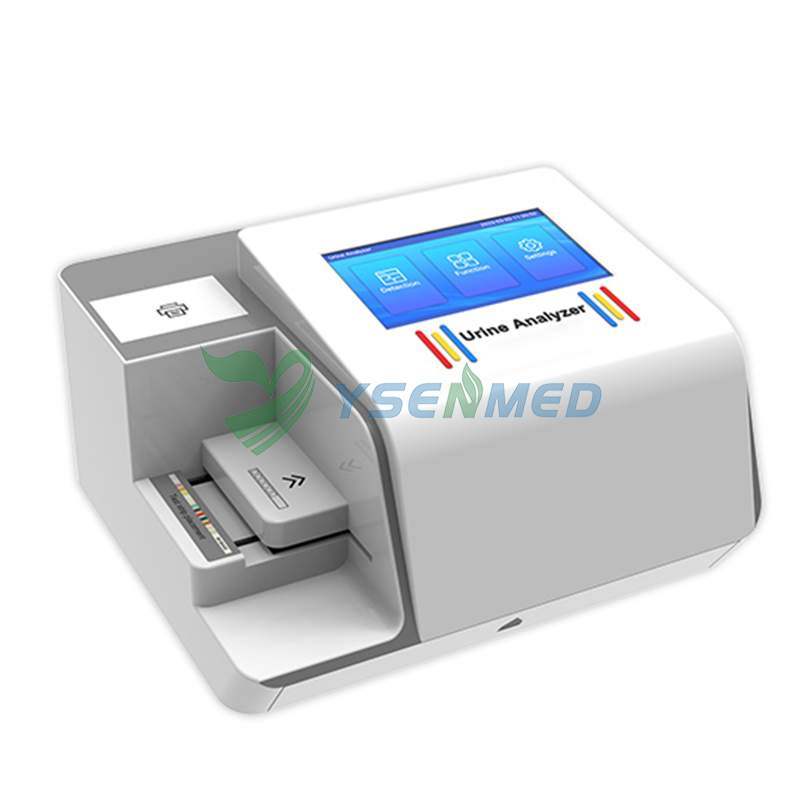

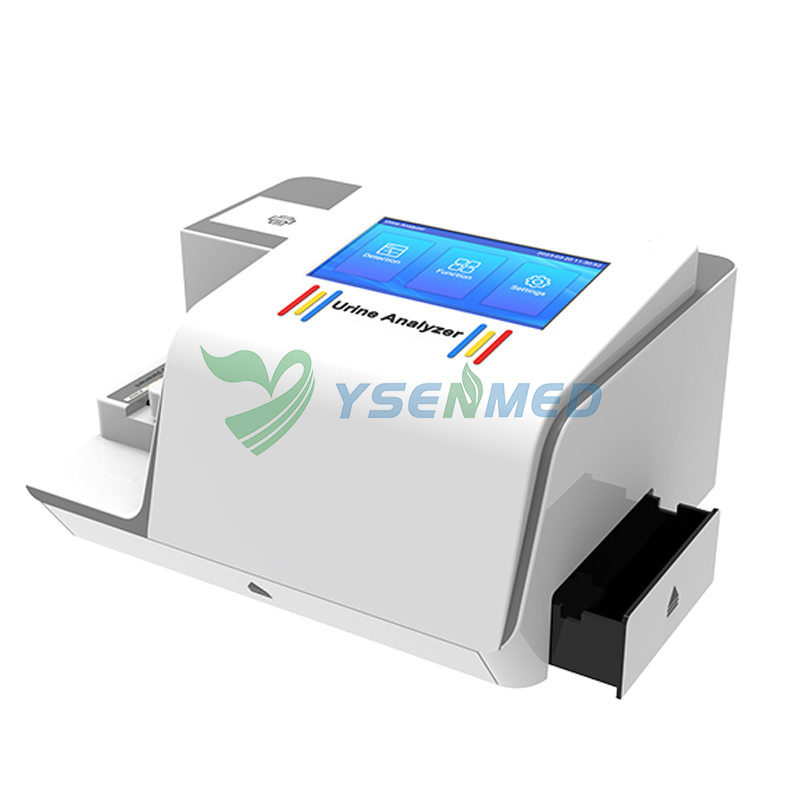

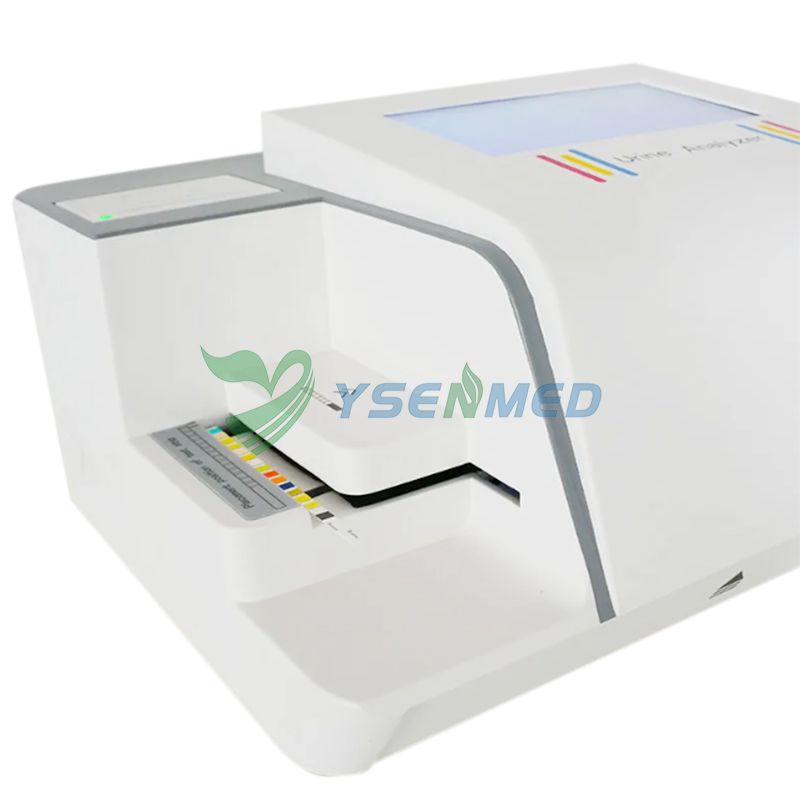

YSTE-UA100 Medical Urine Analyzer
Model:YSTE-UA100

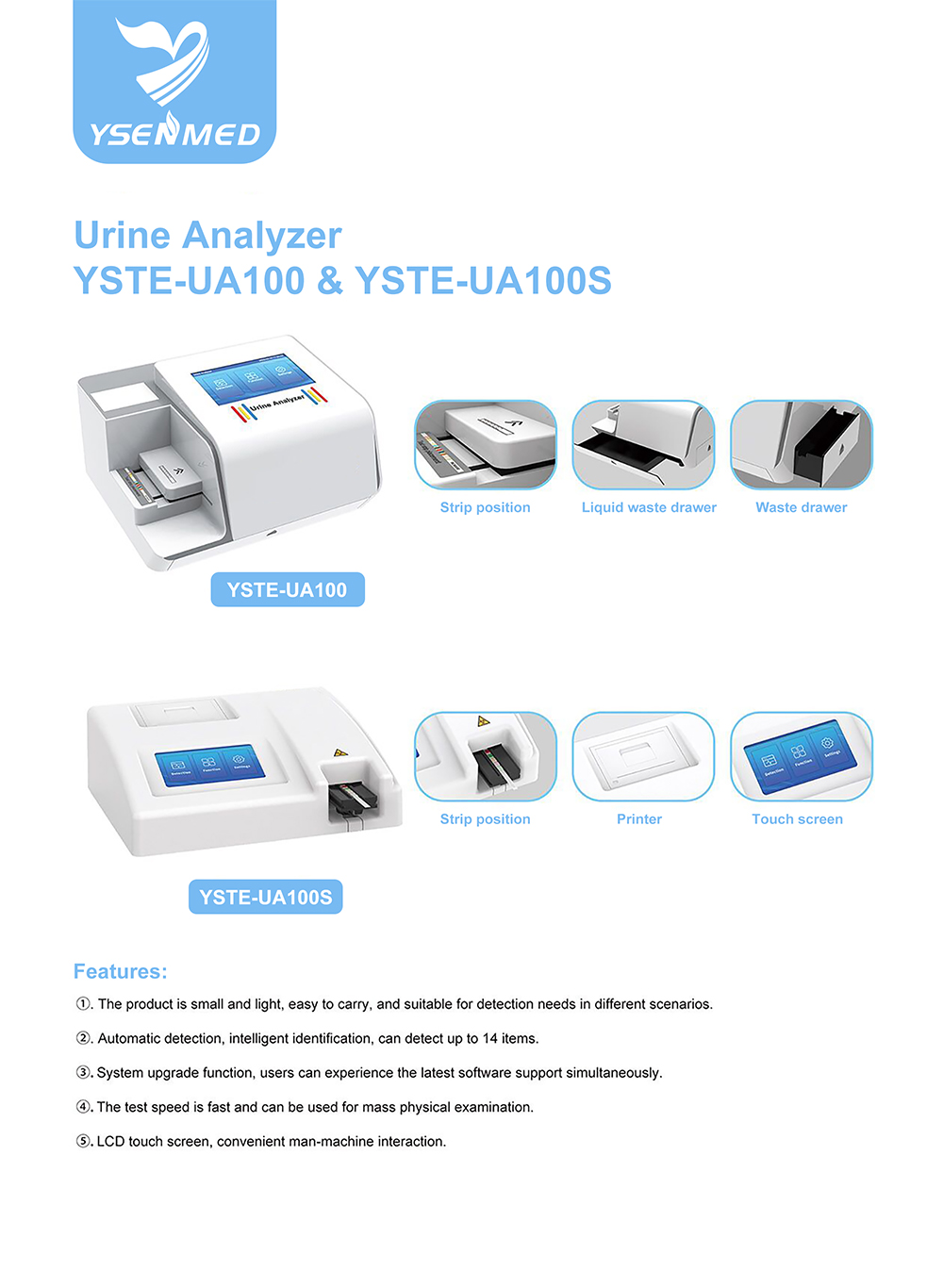

Features
The product is small and light, easy to carry, and suitable for detection needs in different scenarios.
Automatic detection, intelligent identification, can detect up to 14 items.
System upgrade function, users can experience the latest software support simultaneously.
The test speed is fast and can be used for mass physical examination.
LCD touch screen, convenient man-machine interaction.

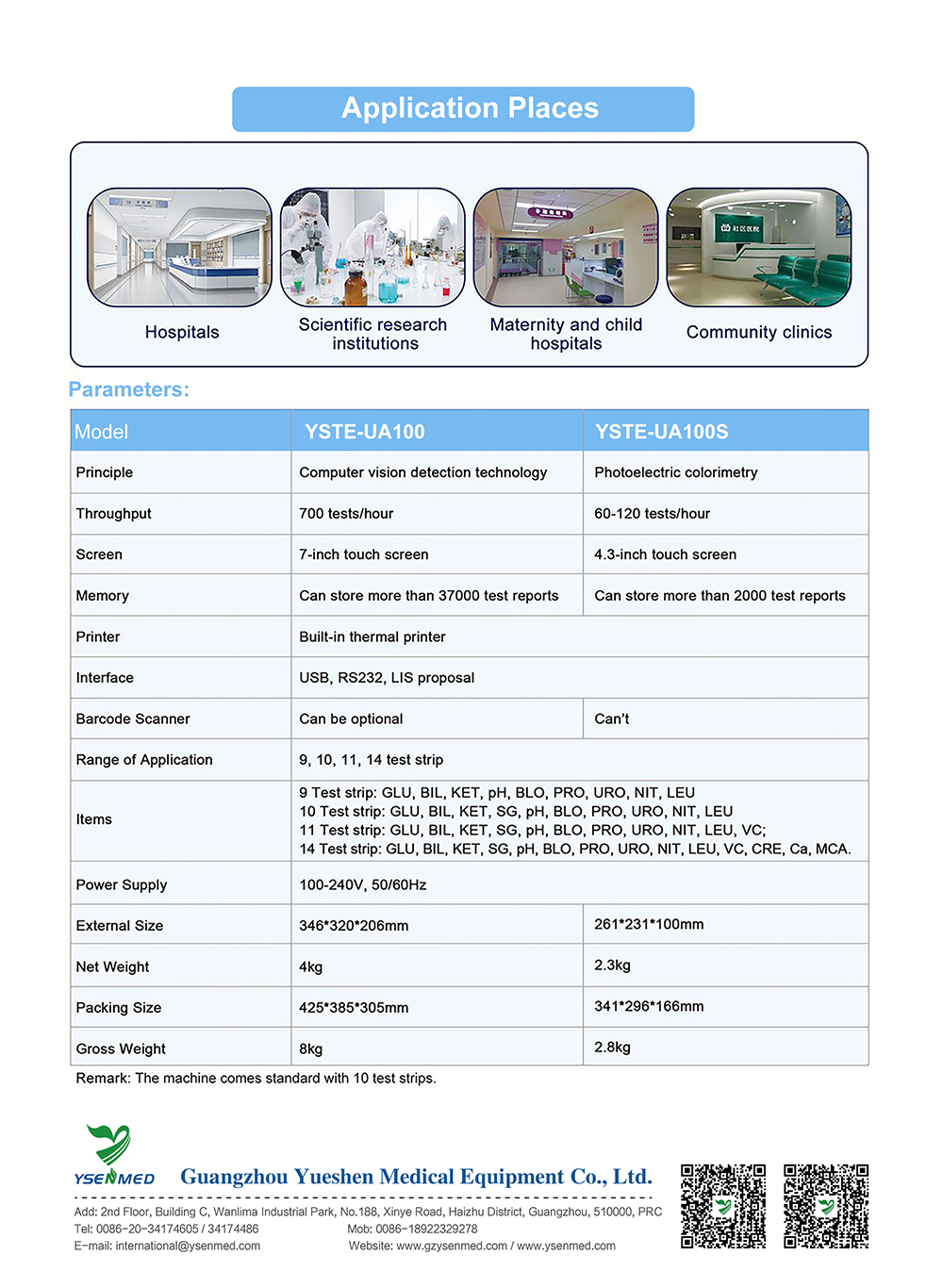

Parameters
|
Model |
YSTE-UA100 |
YSTE-UA100S |
|
Principle |
Computer vision detection technology |
Photoelectric colorimetry |
|
Throughput |
700 tests/hour |
60-120 tests/hour |
|
Screen |
7-inch touch screen |
4.3-inch touch screen |
|
Memory |
Can store more than 37000 test reports |
Can store more than 2000 test reports |
|
Printer |
Built-in thermal printer |
|
|
Interface |
USB, RS232, LIS proposal |
|
|
Barcode Scanner |
Can be optional |
Can't |
|
Range of Application |
9, 10, 11, 14 test strip |
|
|
Items |
9 Test strip: GLU, BIL, KET, pH, BLO, PRO, URO, NIT, LEU 10 Test strip: GLU, BIL, KET, SG, pH, BLO, PRO, URO, NIT, LEU 11 Test strip: GLU, BIL, KET, SG, pH, BLO, PRO, URO, NIT, LEU, VC; 14 Test strip: GLU, BIL, KET, SG, pH, BLO, PRO, URO, NIT, LEU, VC, CRE, Ca, MCA. |
|
|
Power supply |
100-240V, 50/60Hz |
|
|
External Size |
346*320*206mm |
261*231*100mm |
|
Net Weight |
4kg |
2.3kg |
|
Packing Size |
425*385*305mm |
341*296*166mm |
|
Gross Weight |
8kg |
2.8kg |
Application Places
Hospitals, Scientific research institutions, Maternity and child hospitals,
