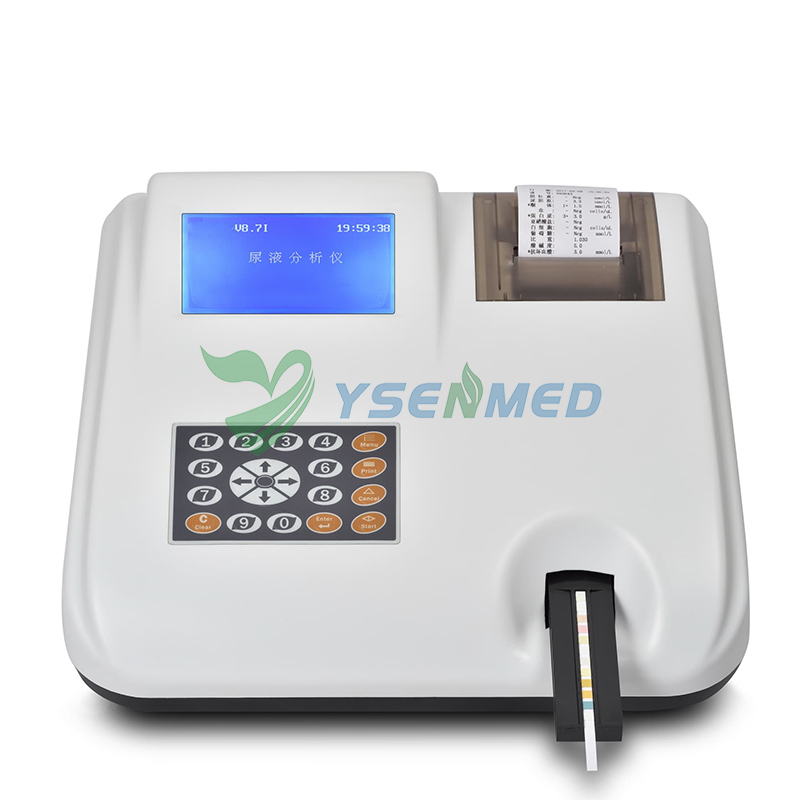

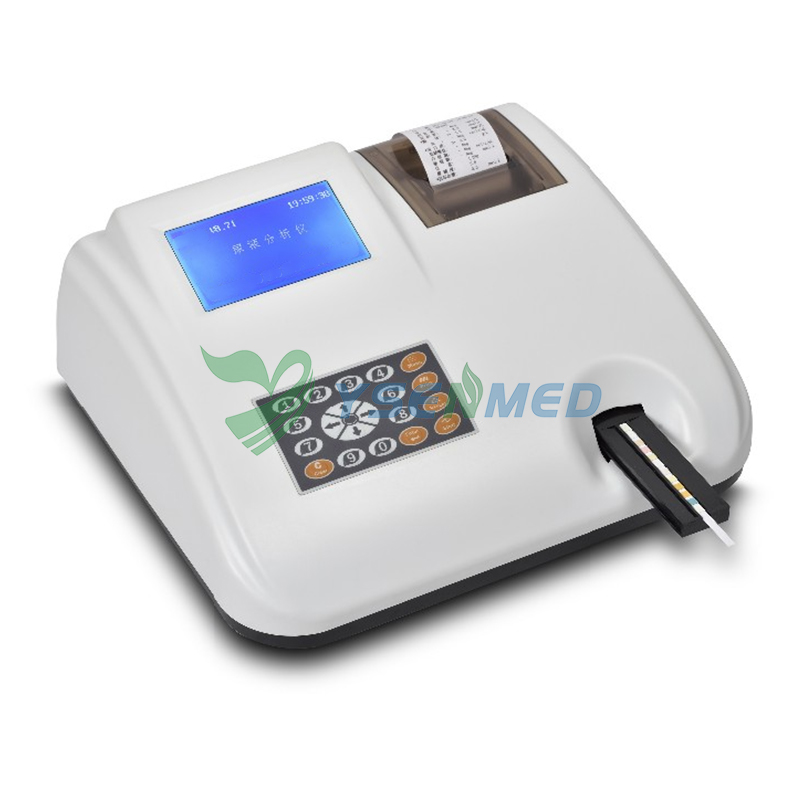

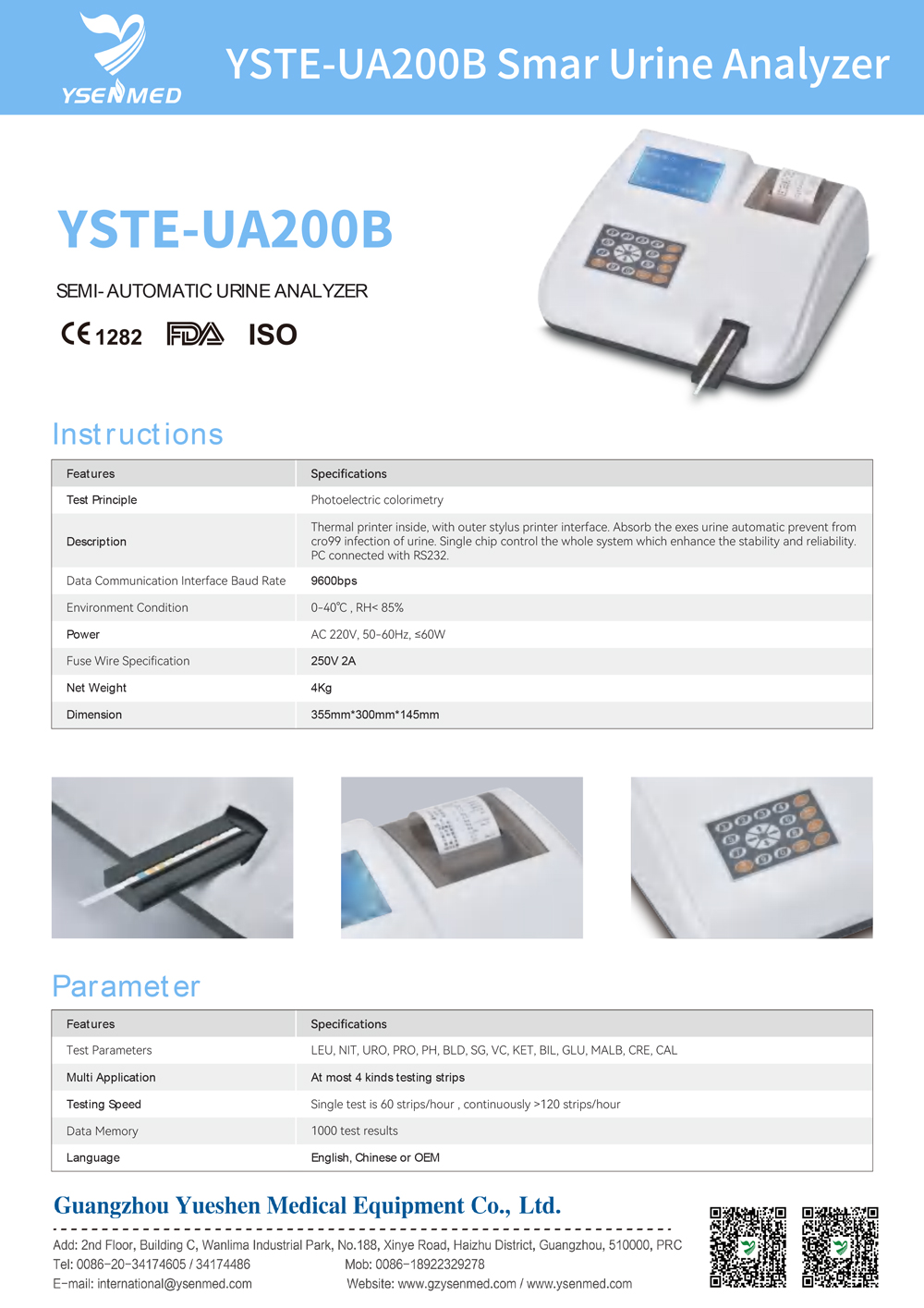

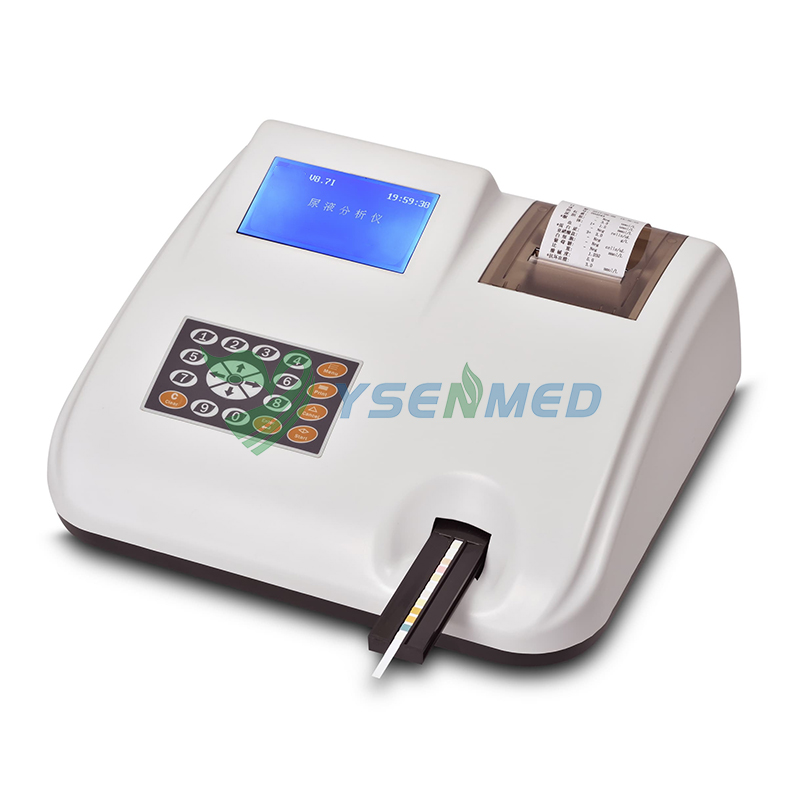

YSTE-UA200B Medical Urine Analyzer
Model:YSTE-UA200B

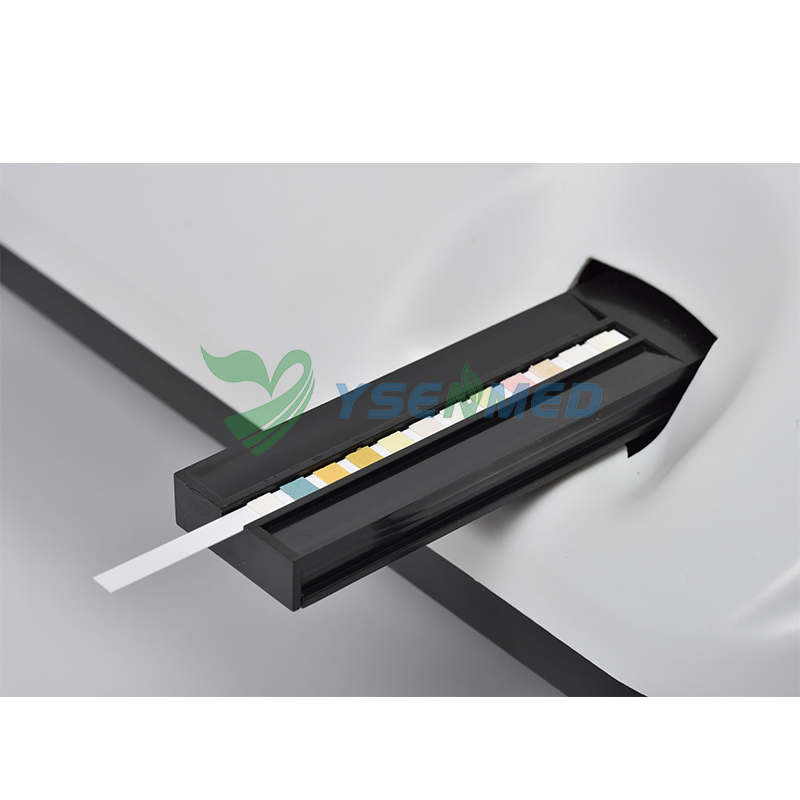

Urinalysis is an important clinical examination. It is a diagnostic method for examining disease. Pregnant women also need to test urine. 10, 11, 12 panels urine strips can be apply to machine read. YSTE-UA200B is good choice for urinalysis test.
Instructions
|
Features |
Specifications |
|
Test Principle |
Photoelectric colorimetry |
|
Description |
Thermal printer inside, with outer stylus printer interface. Absorb the exes urine automatic prevent from cro99 infection of urine. Single chip control the whole system which enhance the stability and reliability. PC connected with RS232. |
|
Data Communication Interface Baud Rate |
9600bps |
|
Environment Condition |
0-40°C, RH<85% |
|
Power |
AC 220V, 50-60Hz, ≤60W |
|
Fuse Wire Specification |
250V 2A |
|
Net Weight |
4Kg |
|
Dimension |
355mm*300mm*145mm |
Parameter
|
Features |
Specifications |
|
Test Parameters |
LEU, NIT, URO, PRO, PH, BLD, SG, VC, KET, BIL, GLU, MALB, CRE, CAL |
|
Multi Application |
At most 4 kinds testing strips |
|
Testing Speed |
Single test is 60 strips/hour, continuously>120 strips/hour |
|
Data Memory |
1000 test results |
|
Language |
English, Chinese or OEM |
