Chemistry Analyzer


Medical Semi-Auto Biochemistry Analyzer YSTE168

Model: YSTE168
Portable semi-auto chemistry analyzer YSTE168
  • ModelYSTE168
  • BrandYSENMED
  • PriceGet Price
  • MOQ1
  • Ship FromFrom Guangzhou, China
  • ShippingAny shipping terms convenient for customers
  • Share:
    Description Get Price Review(0)
    EMPSUN EMP-168

    ● Professional design assures your convenient operation and accurate measurement.
    ● Friendly man-machine conversation interface based on built-in Windows CE.NET
    ● Touch screen, external keyboard and mouse supported
    ● Multi-language version such as Chinese, English, Russian, Spanish etc.
    ● Built-in thermal printer and external printer based on USB interface, supporting on-line printing, multiform reports.
    ● Measure methods include End-point, Two point, kinetic, reagent blank sample blank, immunity nephelometery, and multiplicate selectable calibration methods, such as multi-standards, linear or non-linear calibration curves etc)
    ● Perfect QC function including multifold QC graph , QC parameters calculation , dual-level QC and out of control alarm.
    ● Power-on self-test and malfunction alarm
    ● Real-time display absorbance curve .
    ● Prolonged light source and filter useful-life by intelligent light source protection
    ● Communicate with PC by RS232 or Ethernet, supporting remote software upgrade

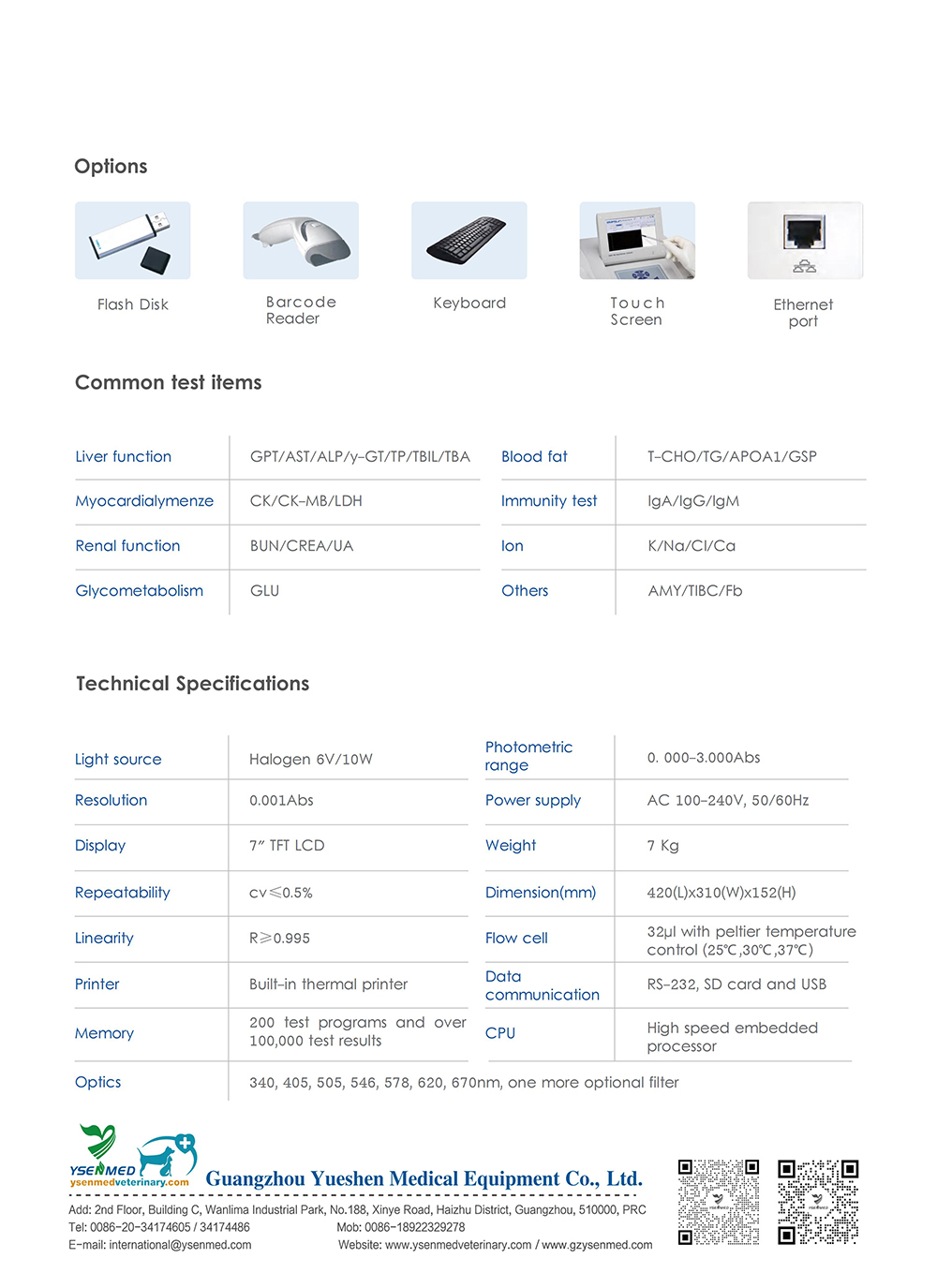

    Wavelengths 340nm, 405nm, 505nm, 546nm, 578nm, 620nm, 670nm (one filter capable add)
    Wavelength Accuracy ±1nm
    Band width 8nm
    Light source Halogen-tungsten lamp,6V/10W
    Flow cell 32ul quartz/metal flow cell
    Absorption range 0.000~3.000ABS
    Resolution 0.001ABS
    Linearity ≤1%
    Cross Contamination Rate ≤1%
    (Sipping)/Aspirate volume >100μl
    absorbency repeatability CV≤1%
    Operation temperature Normal temperature,25°C,30°C,37°C
    Temperature accuracy ±0.1°C
    Memory 200 test programs, over 100,000 test results
    Display 7-inch TFT pitch adjustable touch screen
    Interface RS-232 ,USB host, Ethernet network port, SD port
    Power requirements 100-250 volts AC,50-60Hz
    Dimensions 420(W)X310(D)X150(H)
    Net Weight 8kg
